DB25 Slim Breakout Boards


DB-25 Slim Breakout Boards

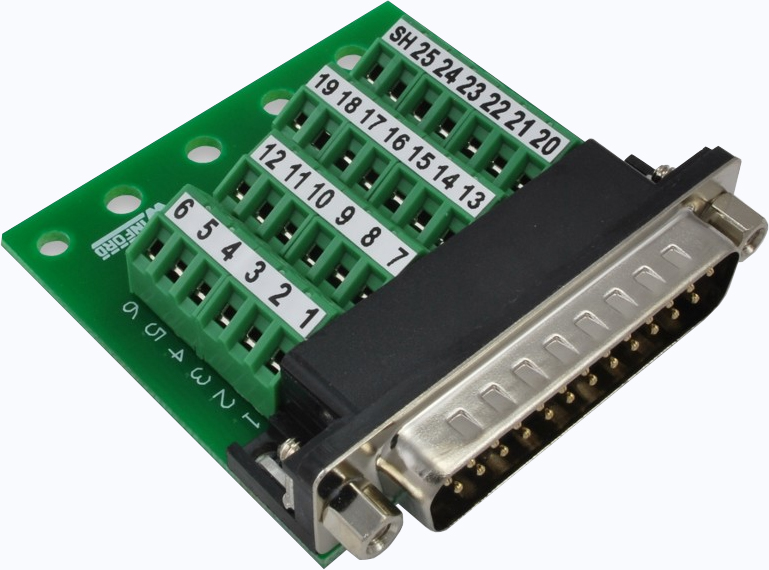

DB25 Slim Breakout Boards - DB25 Male Slim Breakout Board, R/A Connector, Captive Screws
Part No. Description Price Stock
BRKSD25M-R DB25 Male Slim Breakout Board, R/A Connector, Jack Screws $22 1
BRKSD25F-R DB25 Female Slim Breakout Board, R/A Connector, Jack Screws $22 4
BRKSD25F-C DB25 Female Slim Breakout Board, R/A Connector, Captive Screws $24
BRKSD25M-C DB25 Male Slim Breakout Board, R/A Connector, Captive Screws $24 1
∗ Standard lead time is 1 week

General Description

These slim profile breakout boards bring all 25 pins plus shield of a DB25 connector out to screw terminal blocks, allowing simple and quick connections for prototypes or permanent installations. These breakout boards are perfect for field wiring tasks and are available in two different connector hardware options: captive screws or jack screws. The jack screws work well when mounting the breakout board to a wall box plate or thin panel that has a DB25 cutout; the captive screws provide a convenient connection to a mating connector that already has jack screws. See the Connector Hardware Options section below for more details.

The small footprint means that the end profile of the breakout board is no wider than the connector itself. This can be important for installations where equipment contains multiple connectors which are spaced closely together. These slim breakout boards can still be mounted directly to the equipment without using extension cables. Although the breakout board footprint is small, provision for strain reliefs has been included; holes drilled in the board provide anchor points where tie-wraps can be attached.

These breakout boards are available with both male and female connectors. The BRKSD25M has a male connector and the BRKSD25F has a female connector. For larger DB25 breakout boards that include a prototyping area, mounting holes, and DIN rail mounting options, please click here.

These break out boards are perfect for experimentation and prototype work, as well as for use in the educational laboratory. They are well-suited for work with RS-232 serial ports, I/O cards, and any other device that uses a DB-25 connector. A breakout board is sometimes referred to as a "transition module", "terminal board", or "interface module".

These breakout boards are available with either captive screws or jack screws for the connector hardware:

Captive Screws are male #4-40 screws coming out of the face of the connector to accommodate direct mounting to a mating connector which contains jack screws (see picture in Photos section).

Jack Screws are the hex standoffs typically installed on DSUB connectors; they are threaded for #4-40 screws. Jack screws are perfect for connecting to a cable which has thumbscrews, for mounting to a wall plate, or for installing on a thin panel which has a DB25 cutout (see picture in Photos section).

Features


  • Available with DB25 Male or Female connector
  • Screw terminal for each of the 25 pins, plus shield
  • Available with captive screws or jack screws
  • Can be panel mounted
  • Perfect for prototyping and installations
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Small footprint
  • PCB dimensions: 1.94" x 2.09"
