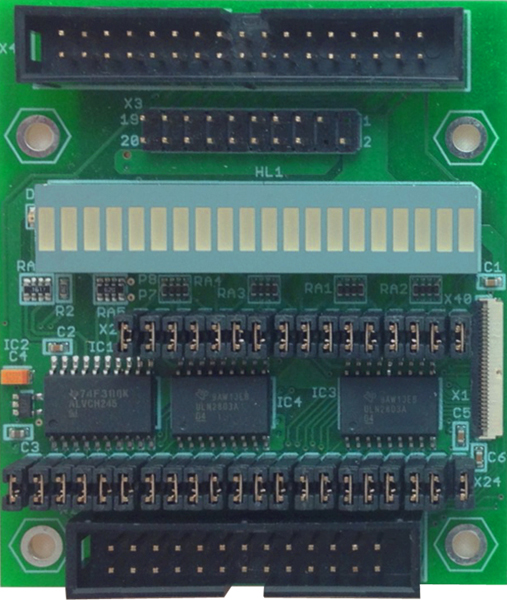

DLPB-1

I/O Expander board adds extra I/O and high current outputs to MINI-MAX/ARM9260-E.

 DLPB-1 - I/O Expander board adds extra I/O and high current outputs to MINI-MAX/ARM9260-E
Part No. Description Price Stock
DLPB-1 I/O Expander board adds extra I/O and high current outputs to MINI-MAX/ARM9260-E $39 ∗
∗ Standard lead time is 1 week

Features

  • Interfaces with MINI-MAX/ARM9260-E image connector using flex cable.
  • Powered from MINI-MAX/ARM9260-E.
  • Brings 22 I/O lines of MINI-MAX/ARM9260 to pin headers.
  • Jumper selectable 16 high current open collector Darlington outputs, 500mA each.
  • Converts five 1.8 Volt logic I/O lines of MINI-MAX/ARM9260 to 3.3 Volt logic.
  • LED indicators for I/O lines.
  • BiPOM peripheral footprint and expansion connector allows plugging standard BiPOM peripheral boards.
