MINI-MAX/P18 Set


Our MINI-MAX/P18 Set contains everything you need to get started with microcontrollers. The core of the sets is the MINI-MAX/P18 microcontroller board, a powerful, yet easy-to-use microcomputer system based on the latest generation of flash-based PIC18F microcontrollers from Microchip.
Ideal for Internet of Things (IoT) applications.

MINI-MAX/P18 Set - MINI-MAX/P18,TB-1,LCD,Keypad,Micro-IDE,Cables,Power Supply
Part No. Description Price Stock
MINI-MAX/P18 Set MINI-MAX/P18,TB-1,LCD,Keypad,Micro-IDE,Cables,Power Supply $149
∗ Standard lead time is 1 week

MINI-MAX/P18 is a fully assembled product that is ready to use out of the box. MINI-MAX/P18 has 64K of flash memory which holds thousands of lines of BASIC, Assembly or C programs. Program execution speeds reach over 2 million instructions per second. Programs are downloaded into the MINI-MAX/P18 with a personal computer through an available serial (COM) port. Downloads typically take only few seconds.

Included project examples demonstrate interfacing to LCD displays, keypads, EEPROM's, analog to digital conversion, buzzer, ports, LEDs and many other microcontroller peripherals.

Features


  • MINI-MAX/P18 Micro-controller Board

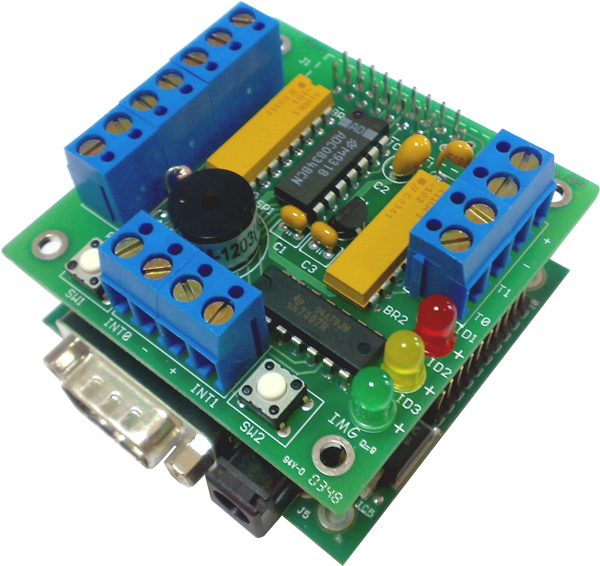

  • TB-1 Training Board with 4-channel, 8-bit Analog/Digital Converter buzzer, traffic lights, counter and interrupt inputs
  • 2-row alphanumeric Liquid Crystal Display (LCD)
  • Matrix Keypad
  • Micro-IDE Integrated Development Environment
  • Serial cable, Power Supply, Online Technical Manual and Schematics
  • Compatible with Microchip MPLAB, MPASM, C18 C Compiler, CCS C Compiler or any other third-party programming language for C or Assembly language programming
