DTA35


DIP Component to Screw Terminal Adapter Board. 8, 14, 16, 20, 24 pins available

DTA35 - DIP Component to Screw Terminal Adapter Board, 14 Pin, Feet
Part No. Description Price Stock
DTA3508-FT DIP Component to Screw Terminal Adapter Board, 8 Pin, Feet $11 3
DTA3520-FT DIP Component to Screw Terminal Adapter Board, 20 Pin, Feet $12 1
DTA3516-FT DIP Component to Screw Terminal Adapter Board, 16 Pin, Feet $12 1
DTA3514-FT DIP Component to Screw Terminal Adapter Board, 14 Pin, Feet $12 2
DTA3508-DIN DIP Component to Screw Terminal Adapter Board, 8 Pin, DIN Rail Mount $12 1
DTA3524-FT DIP Component to Screw Terminal Adapter Board, 24 Pin, Feet $13 2
DTA3516-DIN DIP Component to Screw Terminal Adapter Board, 16 Pin, DIN Rail Mount $13 1
DTA3514-DIN DIP Component to Screw Terminal Adapter Board, 14 Pin, DIN Rail Mount $13
DTA3520-DIN DIP Component to Screw Terminal Adapter Board, 20 Pin, DIN Rail Mount $14 1
DTA3524-DIN DIP Component to Screw Terminal Adapter Board, 24 Pin, DIN Rail Mount $15
∗ Standard lead time is 1 week

General Description

These adapter boards are DIP component holders which greatly simplify and streamline the wiring process. Once a component is installed in the adapter board, simply connectto each component pin via the corresponding screw terminal. The best way to install DIP devices is to simply solder them into the provided solder pads on the adapter board.Please note that these adapter boards boards are manufactured with a connection between each DIP pin solder pad and the corresponding screw terminal; no soldering of any type is necessary beyond soldering the DIP device into the board. The remaining solder pads for each component pin simply provide an area for making optional connections to headers or other components.

In addition, 2 additional busses of solder pads ('Bus A' and 'Bus B') are provided for convenient distribution of signals such as power and ground.

Adapter boards for several of the common DIP pin counts are available. The solder pads on the board accommodate 0.3" and 0.6" footprint DIP packages.

Board mounting options include DIN rail mounting clips and small rubber feet.The rubber feet do not occupy any of the mounting holes. For mounting on a panel, we suggest the rubber feet version (-FT), 1/4" nylon standoffs under the mounting holes, and #6 screws.

Additional Product Photos

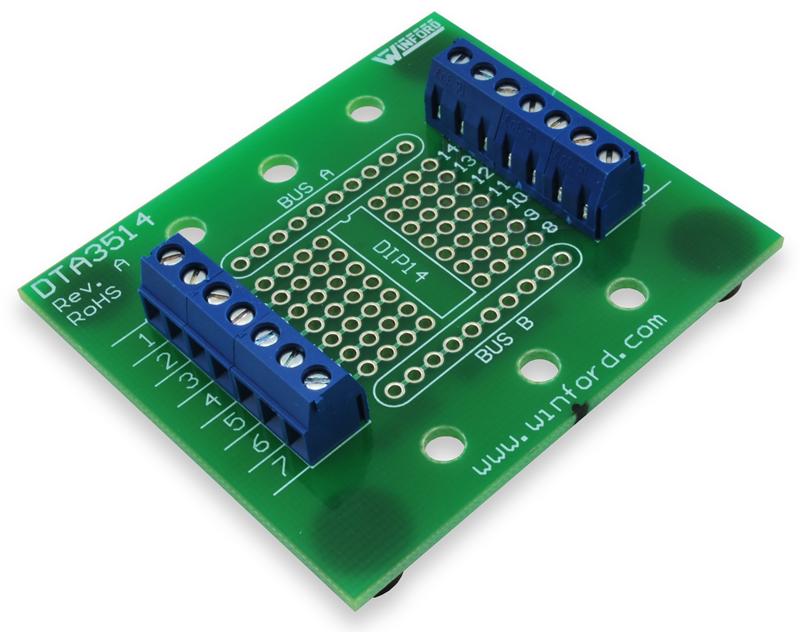

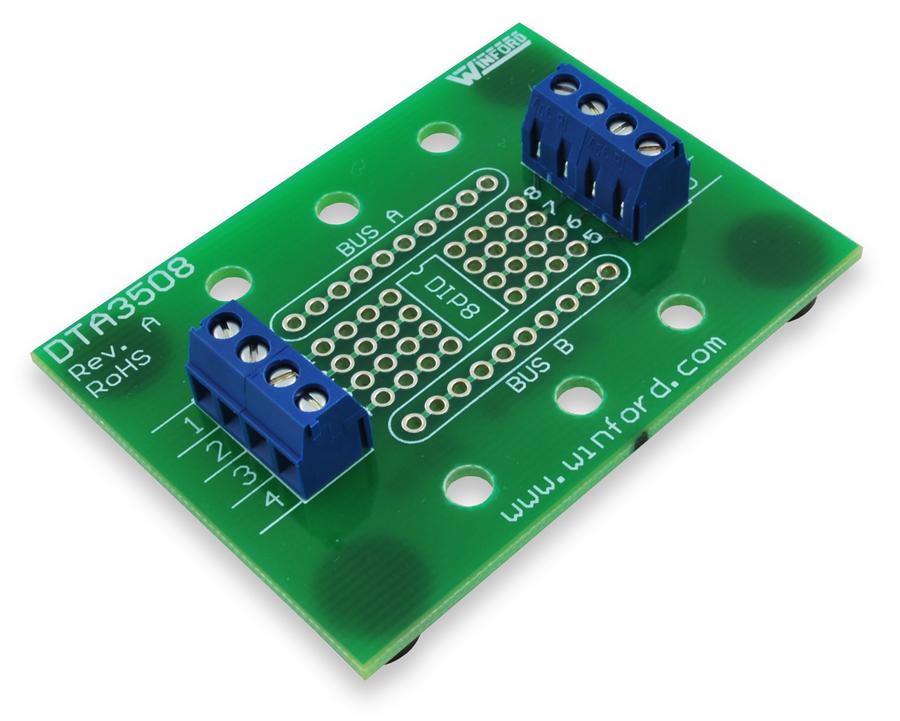

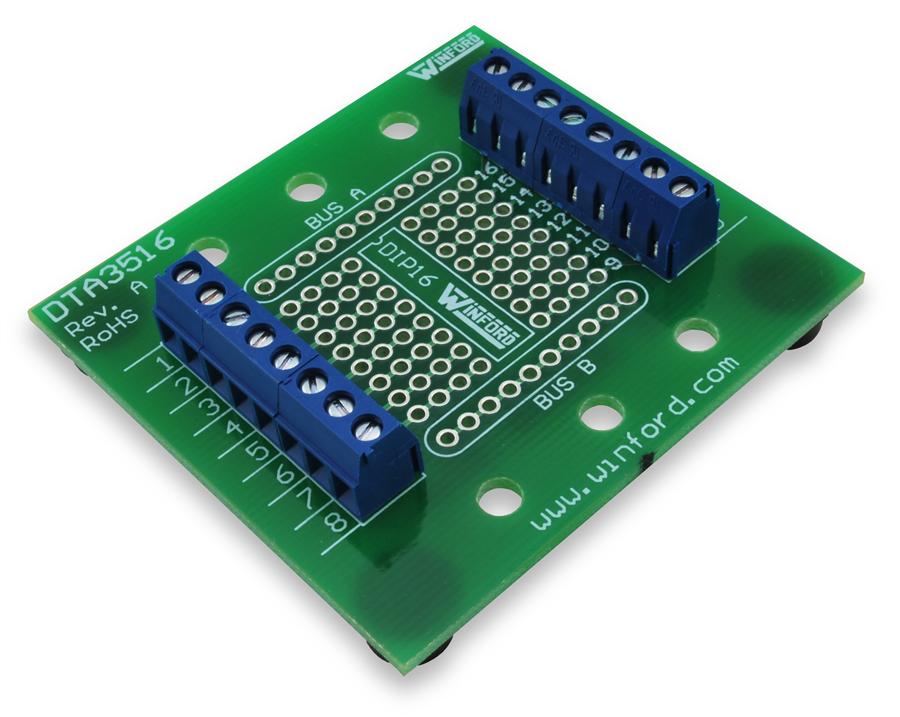

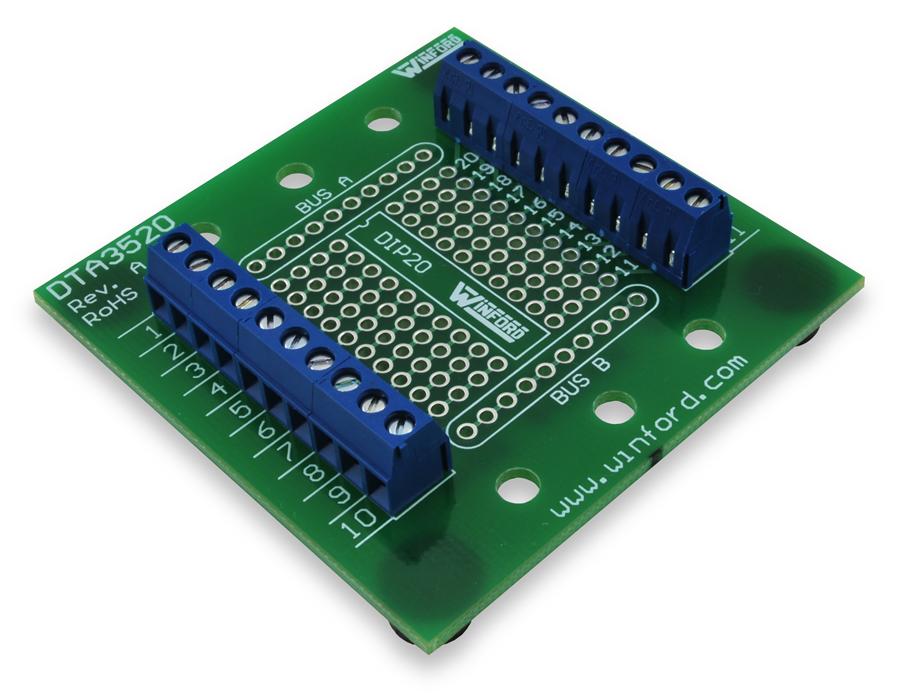

DTA3508-FT DTA3514-FT DTA3516-FT DTA3520-FT
DTA3508-DIN DTA3514-DIN DTA3516-DIN DTA3520-DIN
DTA3508
(click image to enlarge)
DTA3514
(click image to enlarge)
DTA3516
(click image to enlarge)
DTA3520
(click image to enlarge)

DIN Rail Mount Version

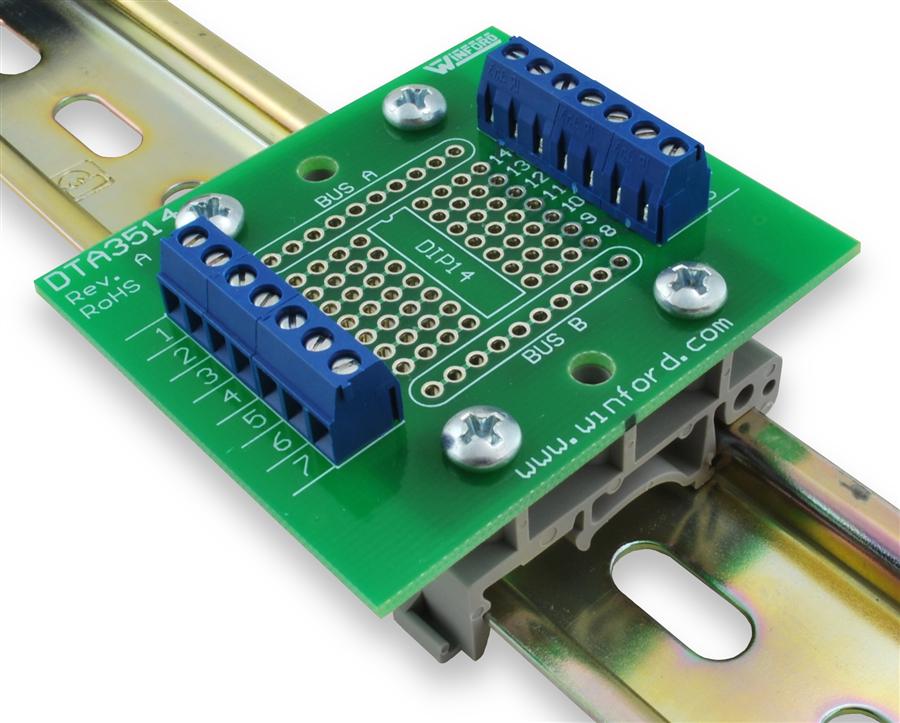

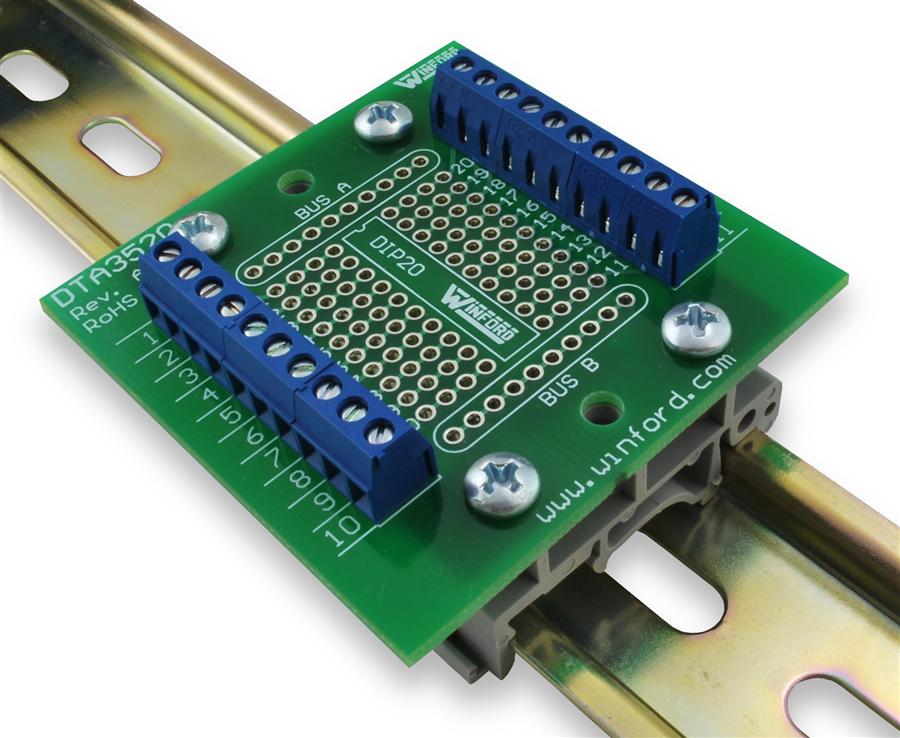

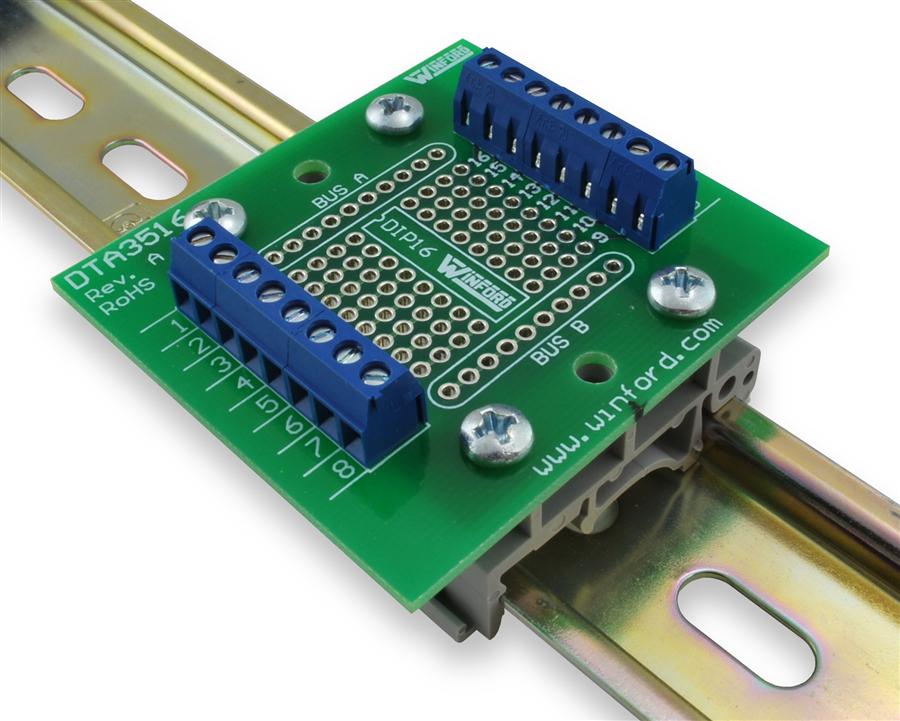

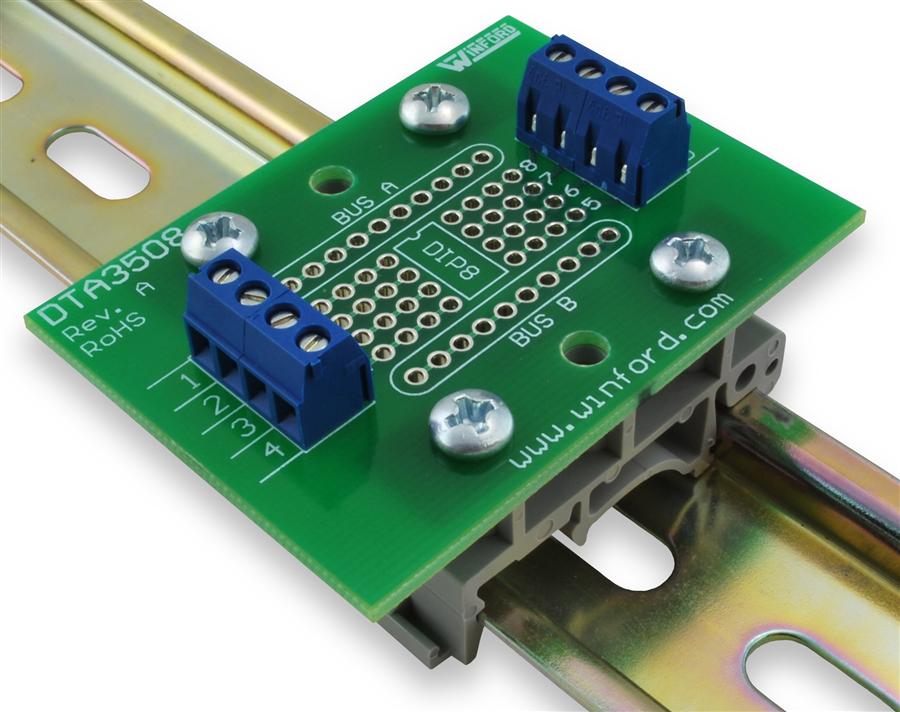

These adapter boards are available with DIN rail mounting clips for quick and convenient mounting where DIN rail is used. Product numbers ending with -DIN come with DIN clips already installed and ready to mount. The clips allow mounting on standard 35mm rail as well as 32mm rail.

Features


  • Easily make connections to DIP components
  • Extra Solder Pads: Extra solder pads for each DIP pin are provided on the board to allow the addition of small components such as diodes, capacitors, resistors, etc.
  • Power Buses: Two groups of extra solder pads form buses for power distribution, etc. Bus A is located at the top of the board, and Bus B is at the bottom of the board.
  • Screw Terminals: Each DIP pin is accessible via a clearly numbered screw terminal. This makes wiring quick and easy.
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Makes field wiring simple
  • Solder area for additional components
