CBHIMSM-6


Mini HDMI Cables

CBHIMSM-6 - HDMI Mini Male to Standard HDMI Male Cable, 6 Ft
Part No. Description Price Stock
CBHIMSM-6 HDMI Mini Male to Standard HDMI Male Cable, 6 Ft $6
∗ Standard lead time is 1 week

General Description

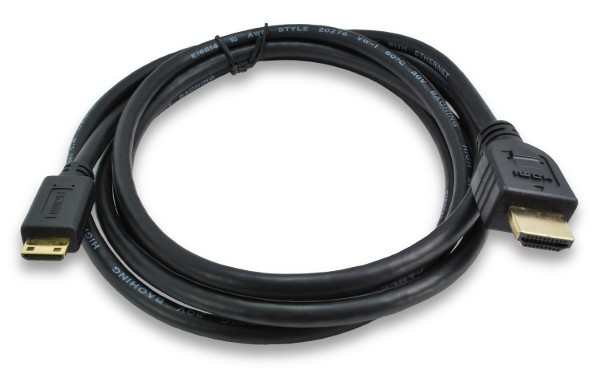

Use these HDMI cables to interconnect high-definition video equipment (video cameras, portable media players, HDTV's, computer monitors, etc.). These cables feature a standard HDMI male Type A connector on one end and an HDMI Mini Male connector (sometimes referred to as Type C) on the other end. Both connectors are gold-plated. Cable length is 6 feet.The HDMI connectors are pictured below.

To eliminate confusion due to the existence of several different HDMI connector form factors, here are the specifics of each connector on this cable:

Connector Type Pin Count Dimensions (Metal Shell)
Standard HDMI Male (Type A) 19 pins 13.9 mm x 4.45 mm
Mini HDMI Male (Type C) 19 pins 10.42 mm x 2.42 mm dimensions
HDMI Male (Type A) HDMI Mini Male (Type C)
HDMI Male (Type A) Connector
HDMI Mini Male (Type C) Connector

Features


  • HDMI Standard Male to HDMI Mini Male
  • Supports 1080p
  • 6 feet in length
  • RoHS compliant
