DB37 Dual Breakout Board DB37 Dual Breakout Boards

Part No.	Description	Price	Stock
BRKDD37MFV1-S-DIN	DB37 Dual Breakout Board, Male-Female, Straight Connectors, DIN Rail Mount	$42	2
BRKDD37MFV1-S-FT	DB37 Dual Breakout Board, Male-Female, Straight Connectors, Feet	$40	2

General Description

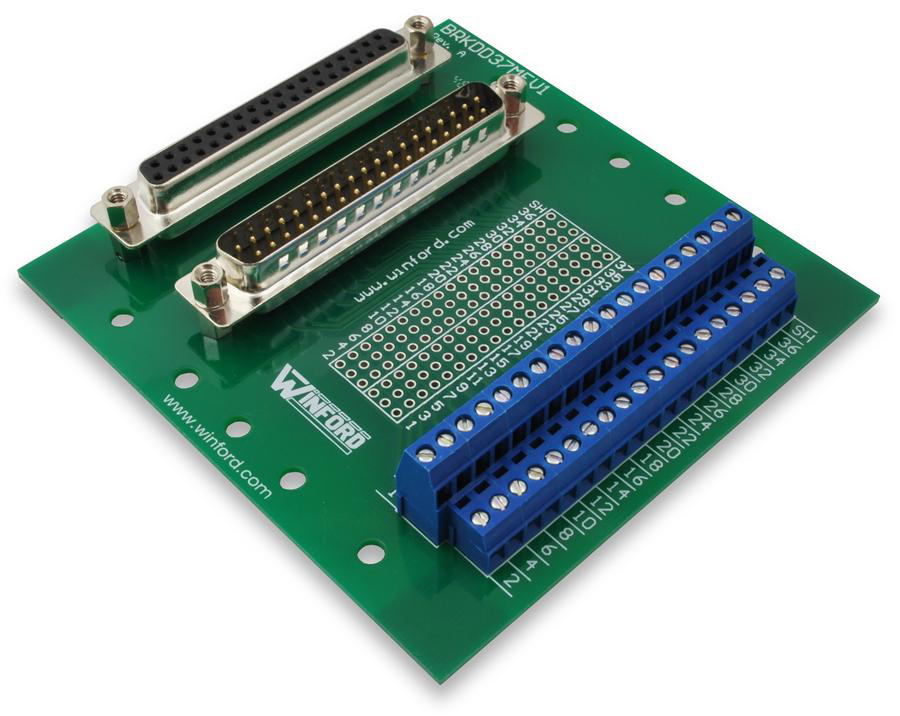

These breakout boards feature two DB37 connectors. The two connectors (one male, one female) are wired 1:1 (pin 1 to pin 1), and all pins are brought out to screw terminals for easy connection. In addition, the shield (connector shell) is brought to a screw terminal as well. The two connectors allow the board to be easily inserted "in-line" with an existing connection, allowing signals to pass through while being monitored. It is also very convenient for "daisy-chaining" equipment.

In addition to the screw terminal connection, each pin is also brought to solder pads (3 per pin) spaced on 0.1" centers, allowing easy addition of standard pin headers. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding screw terminal; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to headers or other components.

These break out boards are perfect for experimentation and prototype work, permanent installations, orfor use in the educational laboratory. They are well-suited for work with I/O cards, CNC equipment, and any other device that uses a DB-37 connector.A breakout board is sometimes referred to as a "transition module", "terminal board", or "interface module".

For mounting on a panel, we suggest the rubber feet version (-FT), 1/4" nylon standoffs under the mounting holes, and #6 screws.

DIN Rail Mount Version

These products are also available with DIN rail mounting clips for quick and convenient mounting where DIN rail is used. Product numbers ending with -DIN come with DIN clips already installed and ready to mount. The clips allow mounting on standard 35mm rail as well as 32mm rail.

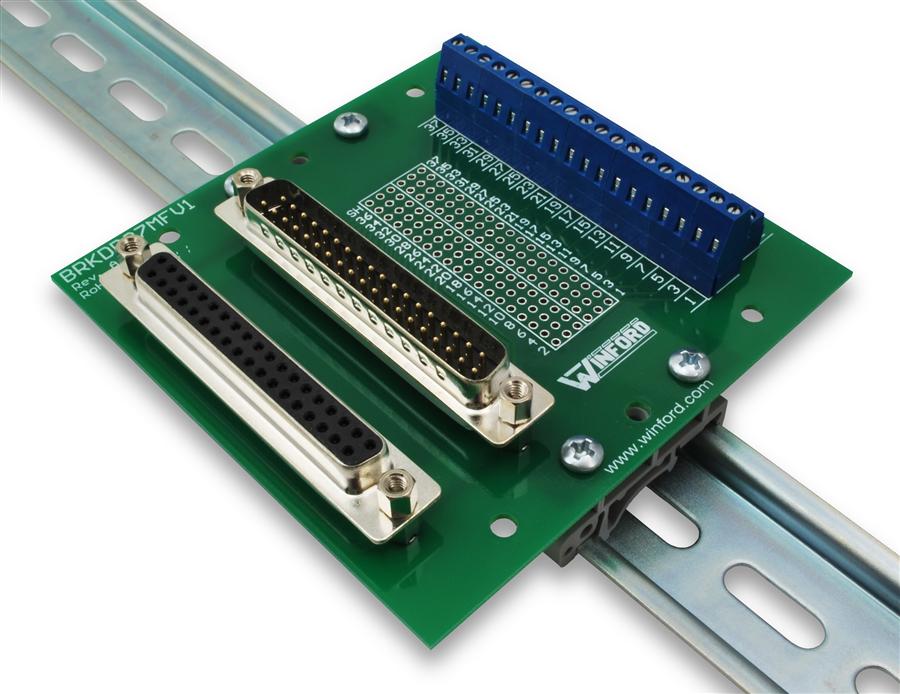

	BRKDD37MFV1-S-DIN pictured - rail not included (click image to enlarge)
