CG9102-MultiWireless


The new CloudGate M2M 3G gateway is certified on all major US cellular operators (CDMA/EV-DO and WADA/HSPA+) with global versions available. The MultiWireless peripheral board adds ZigBee®, Bluetooth® Low Energy and Wi-Fi capabilities to CloudGate.
The combination of MultiWireless and CloudGate offers unmatched wireless gateway capability to battery operated and even energy harvesting sensor networks.
CloudGate MultiWireless is fully backed by a 3-year warranty, technical support and application assistance from BiPOM.

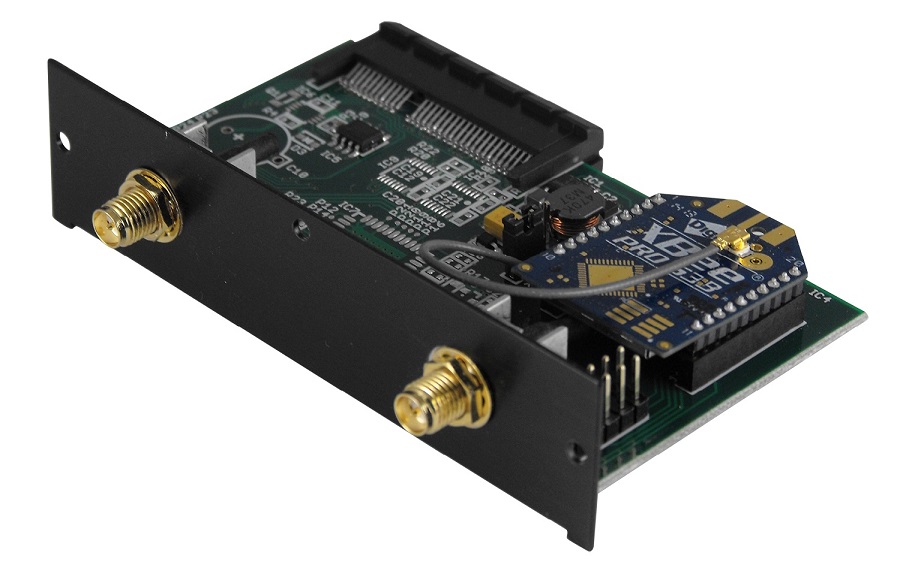

CG9102-MultiWireless - CloudGate multiWireless expansion board. No modules, XBee™ socket.
Part No. Description Price Stock
CG9102-MultiWireless-NM CloudGate multiWireless expansion board. No modules, XBee™ socket. $69 10
CG9102-MultiWireless-ZB CloudGate MultiWireless expansion board. 2.4 GHz XBee™ module installed $99
CG9102-MultiWireless-BT CloudGate MultiWireless expansion board. Bluetooth module installed $109
CG9102-MultiWireless-BT-ZB CloudGate multiWireless expansion board. Bluetooth and 2.4 GHz XBee™ module installed $139
CG9102-MultiWireless-ZBPRO CloudGate MultiWireless expansion board. 2.4 GHz XBee-PRO™ module installed $139
CG9102-MultiWireless-BT-ZBPRO CloudGate multiWireless expansion board. Bluetooth and 2.4 GHz XBee-PRO™ module installed $179
∗ Standard lead time is 1 week

Features


  • LS Research TiWi-BLE Module for Wi-Fi and Bluetooth®
  • XBee™ module socket
  • XBee™ or XBee-PRO™ options
  • Protocols: 802.11 b/g/n, Bluetooth
  • Temperature Range: -30° to 70° Celsius
  • Two Reverse SMA (male) connectors for antennas
  • Use with stub antenna or extender cable
  • Bluetooth® 2.1+EDR
  • Supports Bluetooth Smart and Bluetooth Classic
  • Powers from CloudGate
  • Low power consumption: Under 100mA
  • FCC Certified
