CG9103-2RS232-1USB


The new CloudGate M2M 3G gateway is certified on all major US cellular operators (CDMA/EV-DO and WADA/HSPA+) with global versions available. The CG-dual RS232 + USB board adds 2 RS-232 and one USB OTG ports to CloudGate.
The combination of CG-dual RS232 + USB and CloudGate offers unmatched connectivity to wide spectrum of external devices.
CG MultiWireless is fully backed by a 3-year warranty, technical support and application assistance from BiPOM.
Ideal for Internet of Things (IoT) applications.

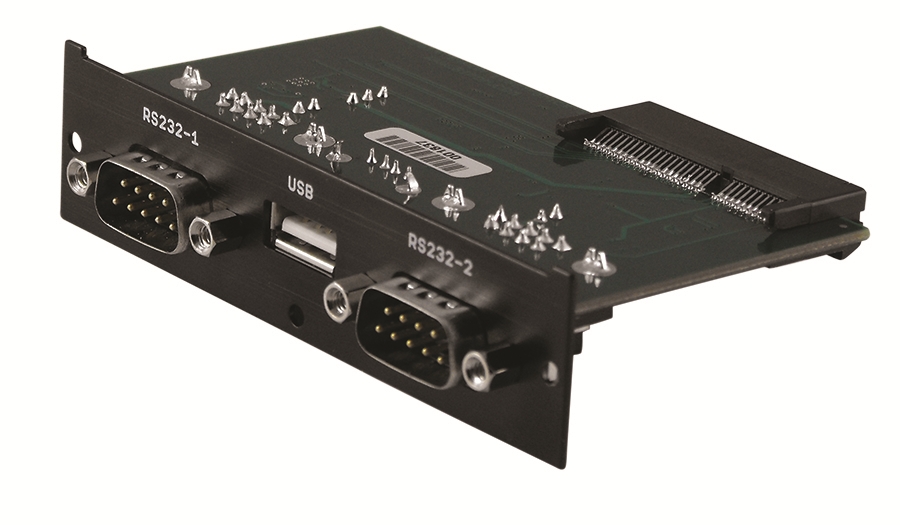

CG9103-2RS232-1USB - CloudGate peripheral dual RS232, 1 USB, 1 microSD socket
Part No. Description Price Stock
CG9103-2RS232-1USB CloudGate peripheral dual RS232, 1 USB, 1 microSD socket $79 32

Features


  • One 4-wire RS-232 port: TXD,RXD,CTS,RTS
  • One 2-wire RS-232 port: TXD,RXD
  • TIA / EIA - 232-F compliant
  • One USB Host interface with power management
  • One microSD socket with power management
  • Powers from CloudGate
  • 5VDC/1A power available to external devices
  • Low power consumption: Under 1mA when idle
  • Protected against Electrostatic Discharge (ESD)
  • FCC Certified
