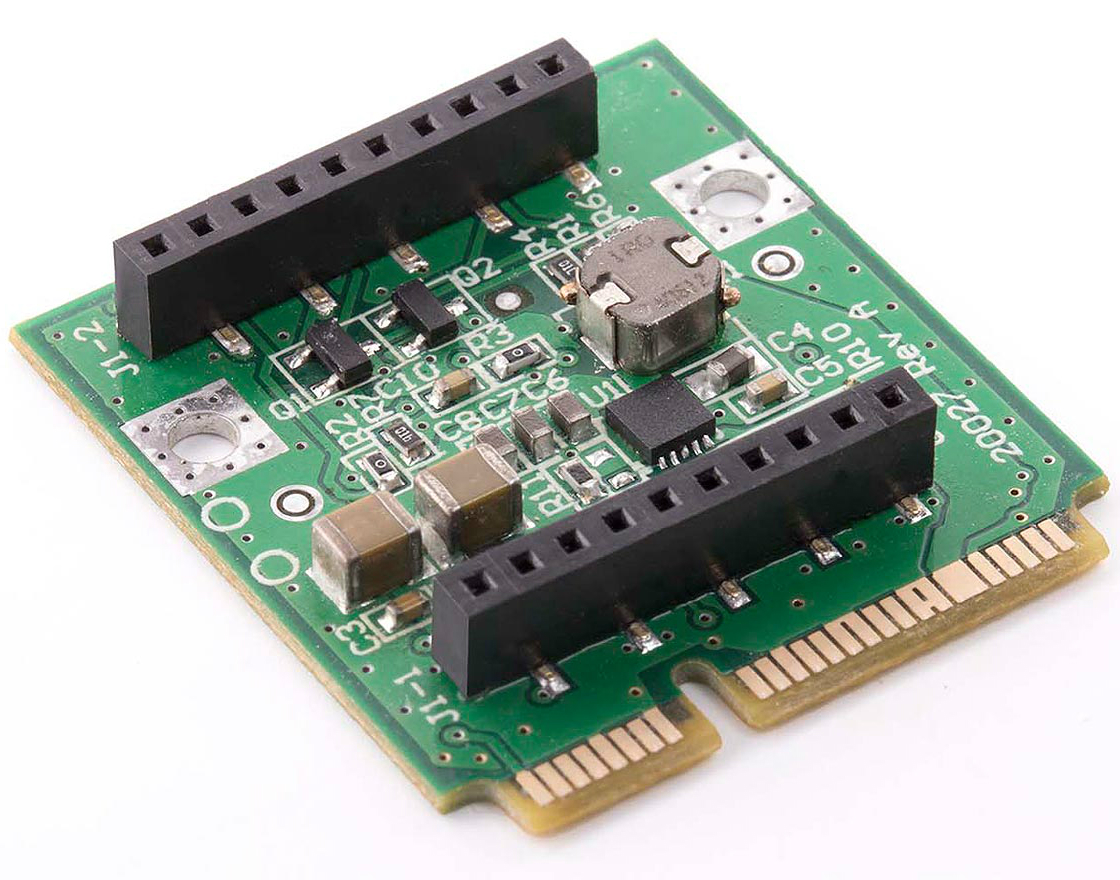

NL-AB-MPCIE


NimbeLink's mini PCI express adapter board is designed to let product developers easily add Verizon cellular connectivity to any device with a mini-PCIe slot—embedded PCs, laptops, or custom PC boards–without the cost and delay of obtaining FCC and carrier certification.
The mini PCIe adapter board is ideal for adding cellular connectivity to either new or existing designs. It is small and is compatible with any of NimbeLink's certified Skywire® cellular modems (except the NL-SW-HSPA modem), which are the smallest in the industry.

NL-AB-MPCIE - Mini-PCI Express Half Size adapter board for all Skywire products except NL-SW-HSPA

Developers can use the Skywire mPCIe adapter to connect directly from the PC to the modem’s USB port to send AT commands through a PC terminal application.

Features


  • Accepts Skywire certified 2G, 3G, and LTE modems
  • Compact size fits directly onto boards with mini-PCIe slots
  • Plug-and-play operation with Linux, Windows 7 & 8.1, and Windows Embedded
  • Customer can use any antenna without requiring re-certification
  • Fast incorporation of Verizon and other cellular access without certification cost
  • Eliminates the need for chip-down modem development
  • Allows compact device layout
  • Requires no software development on Linux and just addition of a USB driver on Windows
