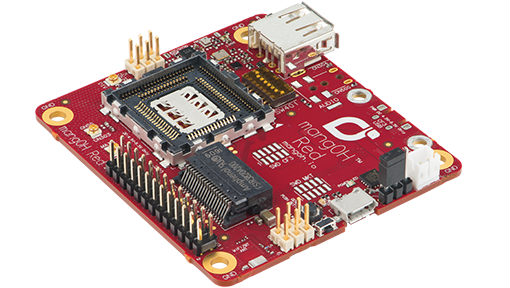

mangOH Red mangOH™ Red is the smallest hardware platform that enables new low-power IoT applications. The industrial-grade reference design offers a revolutionary most power-efficient to achieve 10 years of battery life. It's built with the capabilities that the industrial maker community need for collecting and sending IoT sensor data to the cloud.
Part No.
Description
Price
Stock
MangOHRed_Basic
MangOH Red Basic kit, no module, 1ea LTE Taoglas antenna, WP and HL snap-in covers, removal tool
109
∗
MangOHRED_WP7502
MangOH Red with WP7502 module, EU, 1ea LTE Taoglas antenna, WP and HL snap-in covers, removal tool
99
∗
MangOHRED_WP7504
139
5
MangOHRED_WP7601-1
MangOH Red with WP7601-1 Cat 1 module, LTE 2ea Taoglas antenna,WP and HL snap-in cover,removal tool
139
∗
MangOHRED_WP7601-4
MangOH Red with WP7601-4 Cat 4 module, LTE 2ea Taoglas antenna,WP and HL snap-in cover,removal tool
139
∗
MangOHRED_WP7603-1
MangOH Red with WP7603-1 Cat 1 module, LTE 2ea Taoglas antenna, WP and HL snap-in cover,removal tool
139
3
MangOHRED_WP7603-4
MangOH Red with WP7603-4 Cat 4 module, LTE 2ea Taoglas antenna,WP and HL snap-in covers,removal tool
139
∗
MangOHRED_WP7700
MangOH Red with WP7700 Cat M1/NB-IOT global module, LTE 1ea antenna, WP and HL cover, removal tool
129
∗
MangOHRED_WP7702
MangOH Red with WP7702 Cat M1/NB-IOT module 2G fallback,LTE 1ea antenna,WP and HL cover,removal tool
129
∗
MangOHRED_WP8548
MangOH Red with WP8548 module, 1ea LTE Taoglas antenna, WP and HL snap-in covers, removal tool
99
∗
∗ Standard lead time is 1 week
Features Credit card size form-factor ideal for rapidly building proof-of-concepts
A snap-in socket to add any CF3™ - compatible modules, including wireless modules (2G to 4G & LTE-M/NB-IoT) to achieve up to 10 years of battery life
An IoT Expansion Card slot to plug in any technology based on the IoT Expansion Card open standard
An Integrated Semtech Smart SIM with up to 100 MB free data, depending on region, and can also be used with any commercially available SIM
Integrated with the AirVantage IoT platform to create, deploy and manage solutions in the cloud
The Cortex-M4 processor runs real-time operating system
Built-in Wi-Fi b/g/n and Bluetooth 4.2 BLE
Built-in Accelerometer/Gyroscope, Pressure and Light sensors
26-pin Raspberry Pi-compatible connector
Built-in audio jack allows mangOH Red to make two-way voice calls
Simply connect the board to a console via USB connector
Offers a microSD slot for easy off-line updates and storage
Board can operate on single cell Lithium polymer, DC power supply or USB. There is a battery charger for charging the battery as well
Open Source Linux
Integrated Cloud Services
Warranty Period: 3 years
