DAQ-2543-DA-1

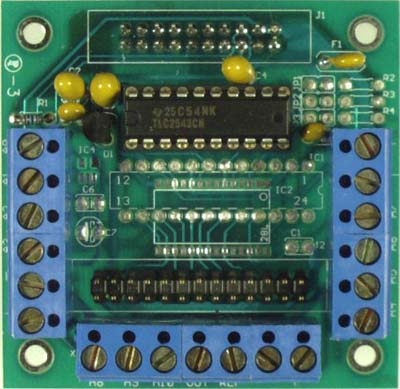

DAQ-2543-DA1 is an ADC/DAC peripheral board with 11 channels of 12-bit analog inputs and one channel of 10-bit analog output.

Documents

Software Download

Support & FAQ

Applications

Peripherals

11 channel 12-bit analog inputs, 10-bit analog output board

Features:

TLC2543, 11-channel, 12-bit Analog-To-Digital Converter from Texas Instruments
10 microsecond ADC conversion per channel
LTC1663, 10-bit DAC, 1 channel
DAC I2C address jumper selectable
4.096V precision reference
Terminal blocks for easy access
Dimensions are 2.35 X 2.40 inches ( 59.7 X 61 mm )
0° - 70° C operating, -40° - +85° C storage temperature range
