ChipProg+


universal programmer for engineering and manufacturing - OBSOLETE, replaced by ChipProg-40 and ChipProg-48 programmers

$395

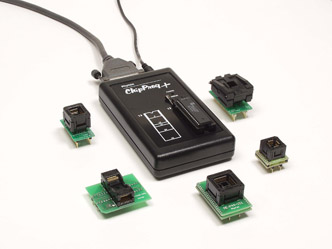

ChipProg+ - Engineering programmer with 40 pin ZIF socket. Controlled via printer port. Discontinued product. Ph

Features


  • Supports parallel & serial EPROM & EEPROM; microcontrollers, and PAL/PALCE/GAL/PEEL/PLD devices
  • Programs all DIP-packed device from 6 to 40 pin via a 40-pin pin ZIF DIP socket - no additional adapters are required
  • Optional adapters for programming devices in PLCC, SOIC, SSOP, QFP, BGA, QFN and other packages are available
  • Supports in-system programming for the devices allowing the ISP (ICP) mode via special cables-adapters
  • Connects to a standard printer port of PC
  • Provides fast programming
  • Works under control of Windows 9x/2000/NT/XP/Vista. Easy-to-use and intuitive user interface
  • Supports loading files of all popular formats: Intel HEX, Binary, Motorola S-format, etc.
  • Built-in editor supports sophisticated operations with blocks
  • Incorrect device insertion check and overcurrent protection
  • Vpp and other parameters precise adjustment via the software settings
  • Splits files to multiple images
  • Embedded script language for automation of routine operations
  • Advanced self-diagnostic start-up routine
  • Lifetime free software updates via Web
  • Very small - 160x90x25 mm (6¼x3¾x1 inch)
