Adapters are available for DIP, PLCC, SOIC and SSOP MCU packages. Some adapters have more than one socket to accomodate more than one package or type of MCU.
The following programming adapters are available for P?Cwriter and Parallax PIC16CXX-PGM programmers.
MP-SOIC 18 |
MP-SOIC 28 |
MP-SOIC 8/14 |
MP-SSOP 18 |
MP-SSOP 28 |
MP-12CXXX |
MP-ZIF-18/28 |
MP-ZIF40 |
MP-ZIF14 |
MP-14000 |
MP-PLCC44 |
The PICmicro® is available in several package styles. To accommodate additional PICs and packages, we stock a variety of adapters for the P?Cwriter. The chart below organizes the supported PICs, Package styles and available adapters.
The first column displays the device to be programmed. The second column indicates the devices that do not require an adapter and are supported by the programmers LIFF socket. The remaining columns display additional device packages and the required adapter part number.

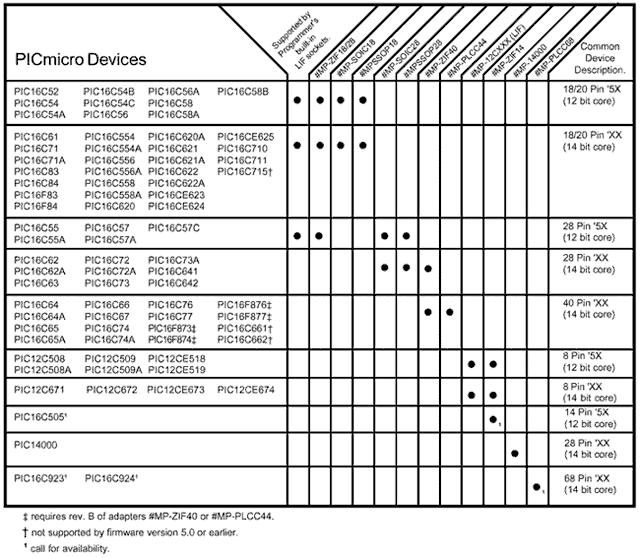

Device Adapter Chart
Single position Adapters
(For use with QuickWriter, Parallax programmers and P?Cwriter programmers)
| Product | Description | Socket(s) | Price | |
|---|---|---|---|---|
| MP-12Cxxx | 8 pin & 14 pin, 12 bit & 14 bit | 8 pin LIFF | $49 | |
| MP-ZIF14 | 8 pin & 14 pin, 12 bit & 14 bit | 14 Pin ZIF | $59 | |
| MP-ZIF18/28 | 18 pin, 12 bit & 14 bit 28 pin, 12 bit |
18 Pin ZIF 28 Pin ZIF |
$69 | |
| MP-14000 | PIC14C000 only | 28 pin ZIF | $59 | |
| MP-ZIF40 | 28 pin & 40 pin 14bit | 40 Pin ZIF | $49 | |
| MP-PLCC44 | 44 pin 14 bit | 44 Pin PLCC | $129 | |
| MP-SOIC8/14 | 8 pin & 14 pin, Narrow & Wide, 12 bit & 14 bit | 14 pin SOIC | $89 | |
| MP-SOIC18 | 18 pin, 12 bit & 14 bit | 18 PIN SOIC | $79 | |
| MP-SSOP18 | 18 pin, 12 bit & 14 bit | 18 Pin SSOP | $79 | |
| MP-SOIC28 | 28 pin, 12 bit & 14 bit | 28 PIN SOIC | $129 | |
| MP-SSOP28 | 28 pin, 12 bit & 14 bit | 28 Pin SSOP | $99 |
New 4 position GANG Adapters (For use with QuickWriter only)
| Product | Description | Socket(s) | Price | |
|---|---|---|---|---|
| QW-4ZIF40/28 | 28 pin & 40 pin 14bit | (4) - 40 pin ZIF | $199 | |
| QW-4PLCC44 | 44 pin 14 bit | (4) - 44 pin PLCC | $199 | |
| QW-4SOIC28 | 28 pin, 14 bit | (4) - 28 pin SOIC | $249 | |
| QW-4SSOP28 | 28 pin, 14 bit | (4) - 28 pin SSOP | $249 | |
| QW-4ZIF18 | 18 pin, 14 bit | (4) - 18 pin ZIF | $199 | |
| QW-4SOIC18 | 18 pin, 14bit | (4) - 18 pin SOIC | $249 | |
| QW-4SSOP20 | 20 pin, 14bit | (4) - 20 pin SSOP | $249 | |
| QW-4ZIF8/14 | 8 pin & 14 pin, 14 bit | (4) - 14 pin ZIF | $199 | |
| QW-4SOIC8/14N | 8 pin & 14 pin, Narrow 14 bit | (4) - 14 pin SOIC | $249 | |
| QW-4SOIC8/14W | 8 pin & 14 pin, Wide 14 bit | (4) - 14 pin SOIC | $249 |
