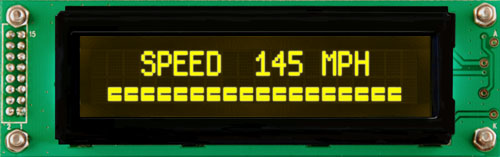

LK202-25-USB-FY

This 20 character by 2 line LCD, comes with an easy to use USB communication interface and has the capability to connect up to a 5 by 5 matrix style keypad.

	Software
	Technical Manual
	Cables
	LCD Selection Guide
	Keypad Selection Guide
	Applications

Features:
Keypad	25
One Wire	1
GPO	6
Advanced GPO	N/A

Appearance:
Module Size	116.00 mm(L)×37.00 mm(W)×25.73mm(T)
Character Size	5.55 mm(L)×3.20 mm(W)
Display Size	79.00 mm(L)×17.00 mm(W)
Background Color	Black
Text Color	Yellow
Format	20 x 2

Interface:
Buffer	128 Bytes
USB	1200 2400 9600 19200 33600 56700 115200

Electrical:
Standard Temperature	0°C to 50°C
Extended Temp.(-E)	-20°C to 70°C
Max Humidity	90℅
Supply Current	50 mA
Backlight Current	185 mA
Inrush Current	N/A

Part No.	Description	Price
LK202-25-USB-FY	Base Product	$69
LK202-25-USB-FY-E	Extended Temperature option.	$79
