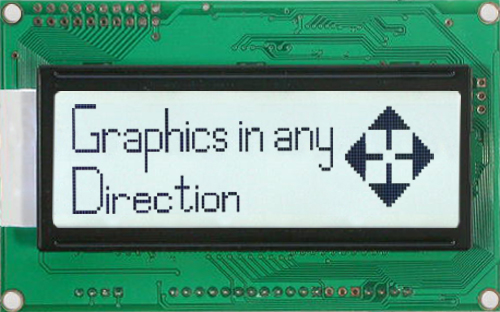

GLK12232-25-FGW Display Module

GLK12232-25-FGW


This 122X32 pixel, single board graphic LCD offers simultaneous text and graphic capabilities. You can upload fonts in any size, style or language. This display is the same size as our 20X4 character display but with graphics.The crisp new FFSTN color with black text, grey/white background is perfect for clearly displaying your information.

Software
Technical Manual
Changes for I2C
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad25
One WireN/A
GPO2
Advanced GPON/A

Appearance:


Module Size98.00 mm(L)×60.00 mm(W)×13.50 mm(T)
Pixels32(Rows)×122(Cols)
Active Area69.50 mm(L)×20.50 mm(W)
Background ColorGrey/ White
Text ColorBlack

Interface:


RS2329600 to 115200
RS232 TTL9600 to 115200
Buffer92 Bytes
OtherI2C

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity0%
Supply Current18 mA
Backlight Current110 mA
Inrush CurrentN/A

Part No. Description Price
GLK12232-25-FGW Base Product $80
GLK12232-25-FGW-E Extended Temperature option. $90
