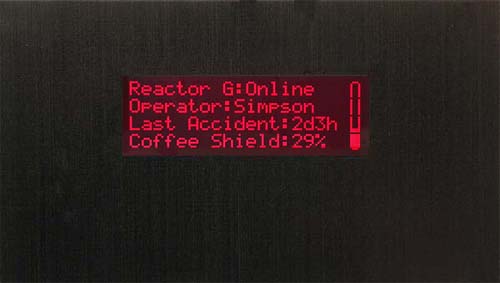

MX433 Display Module

MX433


For the music admirer, use Winamp 2/3/5 to monitor your personal music selection and adjust the volume with the keypad. You don't need to be a PC enthusiast anymore to enjoy the benefits of this unit.With the MX4 series you can now monitor CPU statistics, Hard drive space, and other system critical information. The MX4 also allows you to plug 4 fans and 6 temperature probes directly into the back of the unit for all you quiet and cooling PC needs. Includes everything you will need to get going.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad15
One Wire6
GPO3
Advanced GPO4

Appearance:


Module Size98.00 mm(L)×98.00 mm(W)×27.50 mm(T)
Character Size2.95 mm(L)×4.75 mm(W)
Active Area70.40 mm(L)×20.80 mm(W)
Background ColorBlue
Text ColorWhite
Format20 x 4

Interface:


RS232 TTL19200 to
Buffer80 Bytes
USB19200

Electrical:


Standard Temperature0°C to 50°C
Max Humidity90%
Supply Current25 mA
Backlight Current115 mA
Inrush CurrentN/A

Part No. Description Price
MX433 Base Product $119
