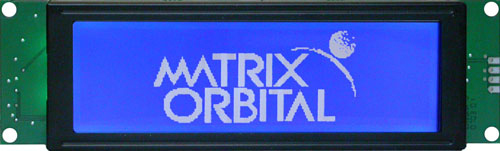

MOP-GL24064R-BBFB-22N-3IN Display Module

MOP-GL24064R-BBFB-22N-3IN


High quality graphic parallel displays feature industry compatible T6963 8 bit controller.This unit will fit into a 1U slot.

Note: This product does not include the pin header or the cable. For LCD displays with pre-soldered connector and cable, please see LCD... series. Cable can also be purchased separately by clicking here.

Software
Technical Manual
LCD242 Cable
LCD Selection Guide

Features:


IC PackageCOB
LCD TypeBlue STN
PolarizerTransflective
Character SetN/A
ModelR
Viewing Angle12 O'Clock
ControllerT6963
NegGenN/A

Appearance:


Module Size144.00 mm(L)×38.00 mm(W)×11.36 mm(T)
Pixels64(Rows)×240(Cols)
Active Area93.57 mm(L)×24.93 mm(W)
Background ColorBlue

Electrical:


Standard Temperature-20°C to 70°C
Max Humidity90%
Supply Current42.6 mA
Backlight Current116 mA

Part No. Description Price
MOP-GL24064R-BBFB-22N-3IN Base Product $70
