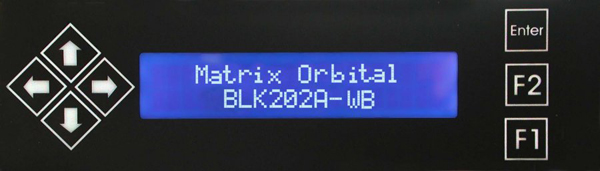

BLK202A-BK-USB-WB

---

This part number includes all that you need for a PC Bay Insert. The display is our LK202-25-USB-WB. Which is a 20x2 USB Character LCD. It also comes with the B202A-BK mounting bracket and External Mini USB cable.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:

---

Keypad	25
One Wire	1
GPO	6
Advanced GPO	N/A

Appearance:

---

Module Size	116.00 mm(L)×37.00 mm(W)×25.73 mm(T)
Character Size	3.20 mm(L)×5.55 mm(W)
Active Area	73.50 mm(L)×11.50 mm(W)
Background Color	Blue
Text Color	White
Format	20 x 2

Interface:

---

Buffer	128 Bytes
USB	1200 2400 9600 19200 33600 56700 115200

Electrical:

---

Standard Temperature	0°C to 50°C
Extended Temp.(-E)	-20°C to 70°C
Max Humidity	90%
Supply Current	50 mA
Backlight Current	185 mA
Inrush Current	N/A

Part No.	Description	Price
BLK202A-BK-USB-WB	Base Product	$92
BLK202A-BK-USB-WB-E	Extended Temperature option.	$99
