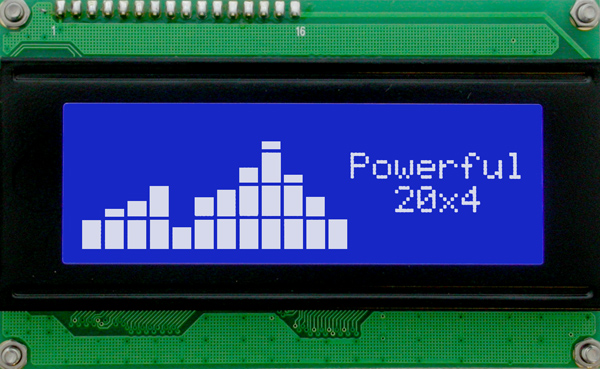

LK204-25-WB Display Module

LK204-25-WB


Not only can our displays show you crucial information, but they can also be used for a little down time when the boss is away. Connect upto a 5x5 matrix style keypad for an easy firing solution to get rid of those nasty raiders.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad25
One WireN/A
GPO6
Advanced GPON/A

Appearance:


Module Size98.00 mm(L)×60.00 mm(W)×27.50mm(T)
Character Size4.75 mm(L)×2.95 mm(W)
Active Area70.40 mm(L)×20.80 mm(W)
Background ColorBlue
Text ColorWhite
Format20 x 4

Interface:


RS2321200 to
RS232 TTL1200 to
Buffer80 Bytes
OtherI2C

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity90%
Supply Current5 mA
Backlight Current89 mA
Inrush CurrentN/A

Part No. Description Price
LK204-25-WB Base Product $70
LK204-25-WB-E Extended Temperature option. $80
LK204-25-WB-V Wide Voltage power, +9 to +15Vdc. $73
LK204-25-WB-V-E Wide Voltage power +9 to +15Vdc. Extended Temperature -20 to +70 C. $83
LK204-25-WB-VPT Wide Voltage efficient power regulator +9 to +35Vdc. This option has a one week lead time. $90
LK204-25-WB-VPT-E Wide Voltage efficient power regulator +9 to +35Vdc. Extended Temperature -20 to +70 C. $100
