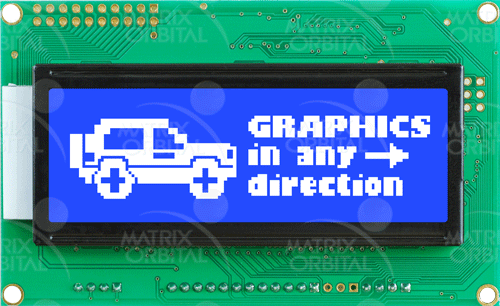

GLK12232-25-WB Display Module

GLK12232-25-WB


GLK12232-25-WB is a 122x32 pixel graphic display. This display is available in White/Blue with a Serial RS232 interface. It is designed to fit into the same space as a 20x4 character display, and can easily be adapted to fit into your existing project and give your interface an overhaul, or add a high end look to a new product. And as always Matrix orbital's graphic design services we can help you create the graphics you need to build your interface.

Software
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad25
GPO2

Appearance:


Module Size98.00 mm(L)×60.00 mm(W)×13.50 mm(T)
Pixels122(Rows)×32(Cols)
Active Area76.00 mm(L)×25.00 mm(W)
Background ColorBlue
Text ColorWhite

Interface:


RS2321200 to 115200
RS232 TTL1200 to 115200
Buffer92 Bytes
OtherI2C

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity90%
Supply Current18
Backlight Current110mA
Inrush CurrentN/A

Part No. Description Price
GLK12232-25-WB Base Product $80
GLK12232-25-WB-E Extended Temperature option. $90
