GLK19264A-7T-1U-422-YG Display Module

GLK19264A-7T-1U-422-YG

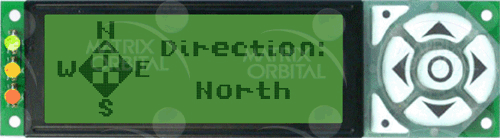

This is a serial (RS422) 192 by 64 pixel graphic LCD with a 7 key tactile keypad and 3 status indicating LEDs. Fits into a 1U opening.

We HIGHLY Recommends that you use a VPT module for any RS422 units.Due to the industrial nature of RS422, VPT modules add a layer of protection, increased efficiency and create a more reliable system.

Please note: this is a new product using PCB revision 2.0.

Software
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad7
One WireN/A
GPO6
Advanced GPON/A

Appearance:


Module Size144.00 mm(L)×38.00 mm(W)×33.00mm(T)
Pixels64(Rows)×192(Cols)
Active Area82.00 mm(L)×28.40 mm(W)
Background ColorYellow/Green
Text ColorBlack

Interface:


RS23219200 to 115200
RS232 TTL19200 to 115200
Buffer128 Bytes
OtherI2C

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity90%
Supply Current90
Backlight Current125mA
Inrush CurrentN/A

Part No. Description Price
GLK19264A-7T-1U-422-YG Base Product $92
GLK19264A-7T-1U-422-YG-E Extended Temperature option. $102
GLK19264A-7T-1U-422-YG-VPT Wide Voltage efficient power regulator +9 to +35Vdc. This option has a one week lead time. $112
GLK19264A-7T-1U-422-YG-VPT-E Wide Voltage efficient power regulator +9 to +35Vdc. Extended Temperature -20 to +70 C. $122
