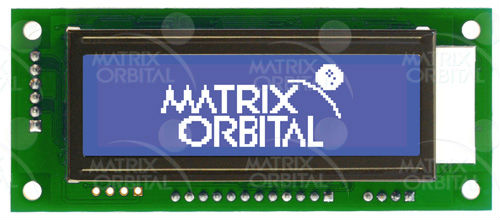

GLK12232A-25-SM-USB-WB-VS Display Module

GLK12232A-25-SM-USB-WB-VS


This is a 122 x 32 pixel graphic display in a small form factor that is perfect for adding graphics to even a small viewable area. This tiny high resolution display is approximately the same size as a 16x2 character display and is designed to upgrade older alphanumeric displays. This display includes a number of advanced user interface features including a 25 key input, 2 five volt general purpose outputs, and a piezo electric buzzer. Additionally, 256KB of memory is available to custom touches including fonts and bitmaps. With Tri-Colour, Grey/White, and White/Blue colour options, this versatile display can upgrade the look of your existing project, or add a high end look to a new product.

Software
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad25
One WireN/A
GPO2
Advanced GPON/A

Appearance:


Module Size86.10 mm (L)×35.10 mm(W)×21.92 mm(T)
Pixels32(Rows)×122(Cols)
Active Area53.64 mm(L)×15.64 mm(W)
Background ColorBlue
Text ColorWhite

Interface:


Buffer256 kb Bytes
USB9600 19200 33600 56700 115200

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity90%
Supply Current65 mA
Backlight Current30 mA
Inrush CurrentN/A

Part No. Description Price
GLK12232A-25-SM-USB-WB-VS Base Product $70
GLK12232A-25-SM-USB-WB-VS-E Extended Temperature option. $80
