GLT12232A-SM-WB-LV Display Module

GLT12232A-SM-WB


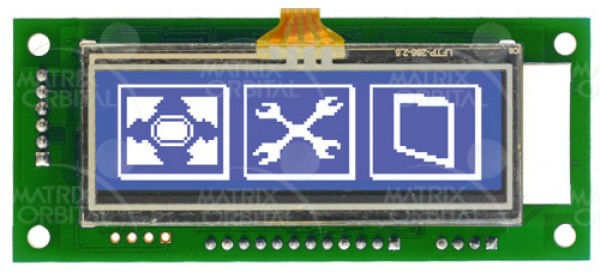

The GLT12232A-SM is a 122x32 Intelligent Graphic LCD display designed to fit into 1U form factors Engineered to quickly and easily add an elegant graphic HMI to any application. Multiple communication protocols such as Serial RS232, TTL, I2C, USB and RS422 communication models allow the GLT12232A-SM Graphic LCD to be connected to a wide variety of host controllers.

Full touch screen, no keypad needed! Our Graphic LCD Touch Panel provides you with a cost-effective industrial HMI user interface solution for that great product/project you are developing. On board memory for Fonts and Bitmaps! This touch screen graphic LCD displays graphics and text in any font, style, justification and language, all with the convenience of a touch screen will allow fast development for any application.

  • 122x32 Graphic LCD 1U HMI
  • Approximate 16x2 LCD form factor
  • Available Interfaces: Serial RS232, TTL, I2C, and USB
  • Resistive Touch panel
  • 256KB of customizable fonts and bitmaps to enhance the graphical user experience
  • Programmable to display any language
  • 2 General Purpose Outputs
  • Two available voltage options: 5V, and low power 3.3V
  • Field upgradable firmware
  • Software controlled contrast and brightness with configurable time-out setting up to 90 minutes
  • Built in Horizontal or Vertical bar graphs
  • Extended temperature available for extreme environments of -20°C to 70°C
  • Hardware flow control
  • Fast and easy development
  • Designed, supported and Made in CANADA
  • Long life cycle

Software
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


KeypadTouchscreen
GPO2
Advanced GPON/A
Viewing Angle60
ControllerLPC1752

Appearance:


Pixels122(Rows)×32(Cols)
Active Area53.64 mm(L)×15.64 mm(W)
Background ColorBlue
Text ColorWhite

Interface:


RS232Available to Available
RS232 TTLAvailable to Available
Buffer256KB Bytes
OtherI2C

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 60°C

Part No. Description Price
GLT12232A-SM-WB-VS Serial (RS232/TTL/I2C) graphic 122X32 Touch Screen LCD HMI, WHT/BLU, Super Wide Voltage 5-15Vdc $80
GLT12232A-SM-WB-LV Serial (RS232/TTL/I2C) graphic 122X32 Touch Screen LCD HMI, WHT/BLU, Low Voltage 3.3Vdc $83
