CB-1


Wireless peripheral board. Adds Infrared ( IrDA ), ZigBee or Bluetooth to a host microcontroller.
Ideal for Internet of Things (IoT) applications.

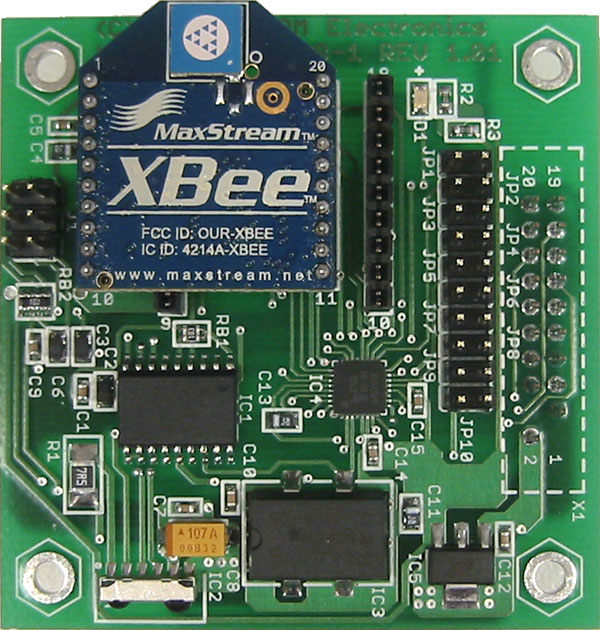

CB-1 - Wireless communications peripheral board.  Provides sockets for ZigBee and Bluetooth modules
Part No. Description Price Stock
CB-1 Wireless communications peripheral board. Provides sockets for ZigBee and Bluetooth modules $39
CB-1-IRDA Wireless communications peripheral board. Infra Red interface $59
CB-1-MZB Wireless communications peripheral board. ZigBee interface $79
CB-1-MZBPRO Wireless communications peripheral board. Extended Range ZigBee interface $99
∗ Standard lead time is 1 week

* Base CB-1 does not include Bluetooth, Zigbee or IrDA modules.

Supported Radio Modules
Type
Manufacturer
PROMI
Bluetooth
Blue Radio
Bluetooth
Xbee
Zigbee
Maxstream ( DIGI )
Xbee Pro
Zigbee
Maxstream ( DIGI )

CB-1 is powered from 5 Volts DC of external power source through the 20-pin expansion connector.

ARM7, 8051/52, BASCOM51 and SDCC (Small Device C Compiler) development systems provide examples for CB-1.

Please download any of these development systems from: www.bipom.com/software.php

Features


  • Slave mode Synchronous Serial Interface (SPI) for host communications. SPI clock speed up to 15Mbit/s
  • 64 bytes of transmit and receive FIFO
  • (Optional) MCP2140 Controller and GP2W0004YP0F Transceiver are used to provide IrDA communications (9600 baud, up to one meter range)
  • An interface and a socket for XB24-ACI-001 ZigBee module
  • An interface and a socket for PROMI-ESD02 BlueTooth module
  • An interface and a socket for BR-SC40A BlueRadios module
  • 20-pin Expansion connector for a host micro-controller board
  • 6-pin PWM and analog output connector
  • One or two CB-1 boards can be connected to a host micro-controller board
  • Single operating voltage: 5 VDC, 60mA typical (180mA maximum) current consumption
  • Onboard 3.3 VDC regulator powered from an external 5 VDC through the expansion connector
  • Dimensions are 2.35 X 2.40 inches (5.97 X 6.10 centimeters)
  • Mounting holes of 0.125 inches (3.5 millimeters) are on four corners
  • 0ºC- 70ºC operating, -40ºC- +85ºC storage temperature range
