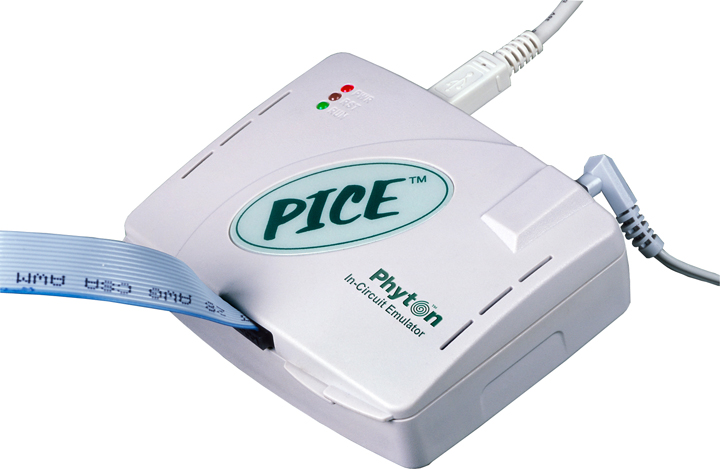

PICE-SE

Features

• Real-time, non-intrusive emulation of the RSC-4x microcontrollers: RSC4128 and RSC464 (available now), and others in future
• Uses standard RSC-4x MCU for emulation up to Fmax (30 MHz for RSC4128)
• Up to 128K Bytes of program memory. Actual memory size depends on the particular target microcontroller.
• Up to 1M Bytes of data memory. Actual memory size depends on the particular target microcontroller.
• Up to 128K true hardware breakpoints at code memory address access.
• Up to 1M true hardware breakpoints at data memory and SFR access for read, write or read/write operations.
• Four complex breakpoints and triggers
• 16K frames x 128-bit real-time tracer with programmable filters
• Several modes of trace recording: synchronies, forward, reverse and dynamic
• "On-the-fly" access to the code memory, shadow memory, breakpoints, tracer and timer
• 48-bit timer provides timing and clock frequency measurement with 0.1% accuracy
• Software programmable clock generator - from 1 KHz to max. frequency with 0.5% accuracy
• Programmable regulator precisely auto-adjusts to the target's voltage level (1.2 V to 5.5 V) and allows working alone at 1.2 V to 5.5 V settable with +/-20 mV accuracy
• 8 probe inputs and 4 trigger outputs
• High-speed host link via 115 KBPS serial PC port opto-isolated for extra protection
• Palm size 3-1/2" x 2-1/2" x 2" (95 x 65 x 50 mm), "sandwich-style" emulator header enclosed into a light plastic or metal case
• Source level debugging and project-level support for the MCA-SE macro assembler and MCC-SE C compiler - editing, compiling, debugging in one development IDE Project-SE
• Embedded C-like script language for automated testing and custom commands
• ChipProg+ universal programmer controlled from the Project IDE can be supplied optionally
