DB25 Breakout Board


DB25 Breakout Board

DB25 Breakout Board - DB25 Male Breakout Board, R/A Connector, Feet
Part No. Description Price Stock
BRK25F-R-FT DB25 Female Breakout Board, R/A Connector, Feet $20 2
BRK25M-R-FT DB25 Male Breakout Board, R/A Connector, Feet $20 4
BRK25MV2-R-FT DB25 Male Breakout Board, R/A Connector, Feet $20 2
BRK25F-S-FT DB25 Female Breakout Board, Straight Connector, Feet $21 1
BRK25M-S-FT DB25 Male Breakout Board, Straight Connector, Feet $21 1
BRK25F-R-DIN DB25 Female Breakout Board, R/A Connector, DIN Rail Mount $22 1
BRK25M-S-DIN DB25 Male Breakout Board, Straight Connector, DIN Rail Mount $22 1
BRK25M-R-DIN DB25 Male Breakout Board, R/A Connector, DIN Rail Mount $22 2
BRK25F-S-DIN DB25 Female Breakout Board, Straight Connector, DIN Rail Mount $22 1

General Description

These breakout boards bring all 25 pins of a DB25 connector out to screw terminal blocks for easy connection and prototyping work. They are available with both male and female connectors. The BRK25M has a male connector and the BRK25F has a female connector. Each pin is also brought to solder pads (4 per pin) at 0.1' spacing, allowing easy addition of standard pin headers.

These break out boards are perfect for experimentation and prototype work, as well as for use in the educational laboratory. These boards are useful in working with National Instruments data aquisition cards, CNC equipment, and any other device that utilizes a DB25 connector. A breakout board is sometimes referred to as a 'transition module', 'terminal board', or 'interface module'.

For mounting on a panel, we suggest the rubber feet version (-FT), 1/4' nylon standoffs under the mounting holes, and #6 screws.

The BRK25M (male connector) includes a few features for use with our Connector Style

These breakout boards are available with either a Right Angle connector or a Straight ('Vertical') connector. The terms Right Angle and Straight refer to the connector itself, NOT the relationship of the mating cable to the PCB. In fact, the cable mating to a Right Angle connector is parallel to the PCB, while the cable mating to a Straight connector is perpendicular to the PCB. These are pictured below:

BRK25F-R-FT BRK25F-S-FT

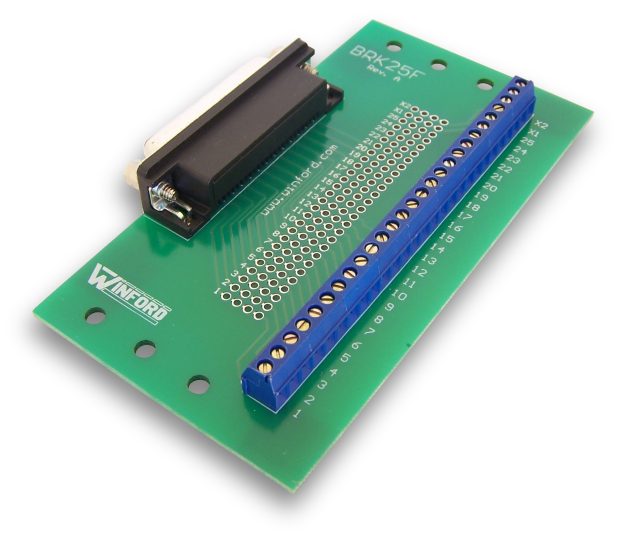

Right Angle Connector
BRK25F-R-FT pictured

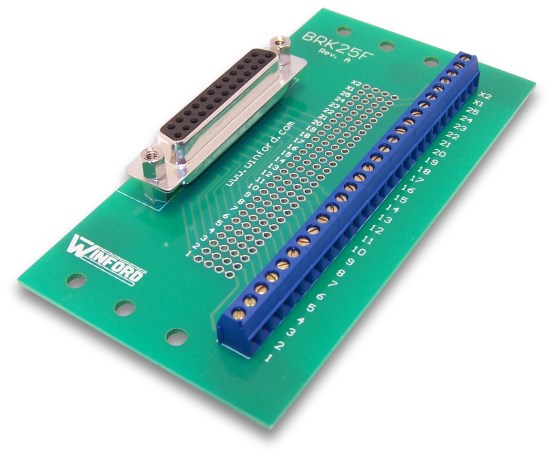

Straight Connector
BRK25F-S-FT pictured
DIN Rail Mount VersionThese products are also available with DIN rail mounting clips for quick and convenient mounting where DIN rail is used. Product numbers ending with -DIN come with DIN clips already installed and ready to mount. The clips allow mounting on standard 35mm rail as well as 32mm rail.

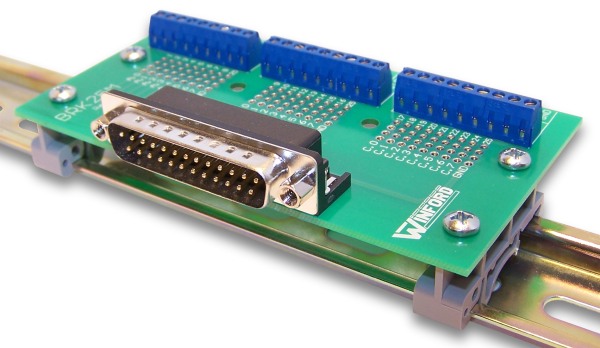

BRK25M-R-DIN
(BRK25M-R-DIN pictured - rail not included)

Features


  • Available with DB25 Male or Female connector
  • Perfect for prototyping parallel port and serial port circuits
  • Screw terminal for each data line
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Solder connection holes, four (4) per data line
  • Supports addition of .1' pin headers
  • PCB dimensions: 2.38' x 4.5'
  • Rubber feet or DIN rail mount
