DB78HD Breakout Board


DB78HD Breakout Board

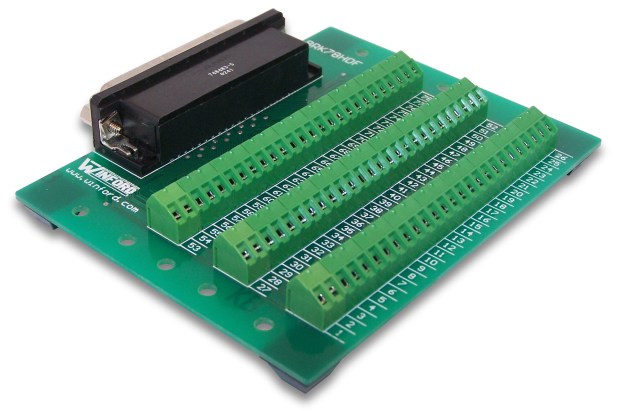

DB78HD Breakout Board - DB78HD Female Breakout Board, R/A Connector, Feet
Part No. Description Price Stock
BRK78HDF-R-FT DB78HD Female Breakout Board, R/A Connector, Feet $83
BRK78HDF-R-DIN DB78HD Female Breakout Board, R/A Connector, DIN Rail Mount $85 3
∗ Standard lead time is 1 week

General Description

These breakout boards bring all 78 pins of a DB78HD (high density, 4 row) Female connector out to screw terminal blocks for easy connection and prototyping work.

These break out boards are perfect for experimentation and prototype work, as well as for use in the educational laboratory. They are well-suited for interfacing with data acquisition equipment or any other devices that use a DB-78 connector. A breakout board is sometimes referred to as a 'transition module', 'terminal board', or 'interface module'.

For mounting on a panel, we suggest the rubber feet version (-FT), 1/4' nylon standoffs under the mounting holes, and #6 screws.

DIN Rail Mount Version

These products are also available with DIN rail mounting clips for quick and convenient mounting where DIN rail is used. Product numbers ending with -DIN come with DIN clips already installed and ready to mount. The clips allow mounting on standard 35mm rail as well as 32mm rail.

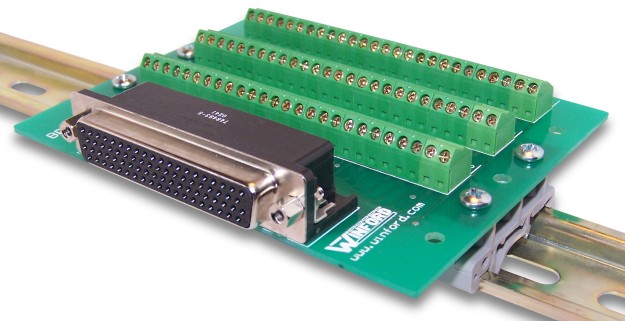

BRK78HDF-R-DIN
(BRK78HDF-R-DIN pictured - rail not included)

Features


  • DB78HD (high density, four row) connector
  • Screw terminal for each data line
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 3.6' x 4.6'
  • Rubber feet or DIN rail mount
