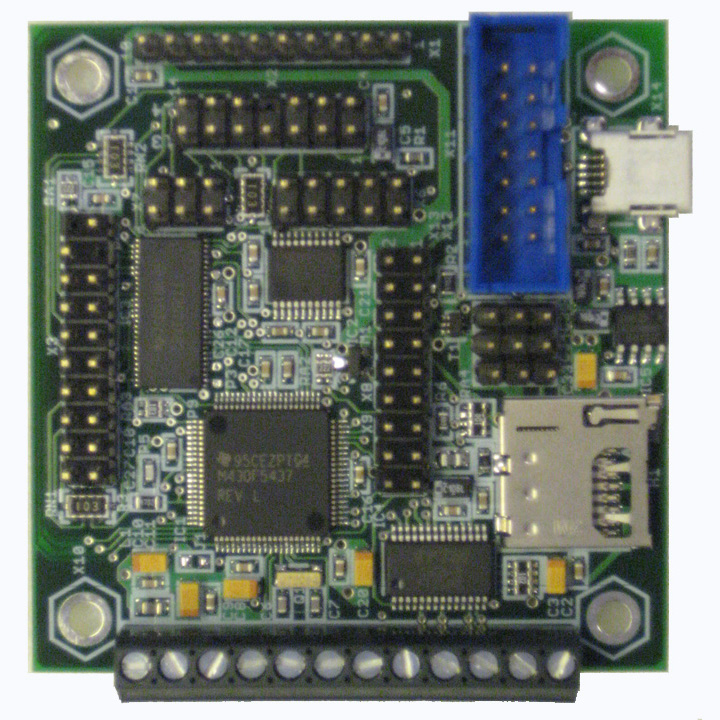

MINI-MAX/MSP430-C

MINI-MAX/MSP430-C is a ultra low power, low-cost and highly expandable micro-controller system based on the Texas Instruments MSP430 single-chip Flash micro-controller.
Ideal for Internet of Things (IoT) applications.

 MINI-MAX/MSP430-C - Ultra Low Power Microcontroller board with TI MSP430, 256K Flash, 16K RAM, RS232, 12-bit ADC
Part No. Description Price Stock
MINI-MAX/MSP430-C Ultra Low Power Microcontroller board with TI MSP430, 256K Flash, 16K RAM, RS232, 12-bit ADC $79 ∗
∗ Standard lead time is 1 week

Features

  • Texas Instruments MSP430F5437IPNR Ultra Low Power Microcontroller
  • 256K Flash, 16K RAM
  • USB port based on FTDI chipset
  • Dual RS232 ports
  • Ultra Low Power, USB or Battery operation possible, peripheral shutdown capability
  • 16-channel, 12-bit ADC
  • Expansion, LCD, keypad connectors
  • Ideal for data loggers and data acquisition systems
  • Warranty Period: 3 years
