RLP104


4 Channel Passive Relay Board, SPDT 15A Relays

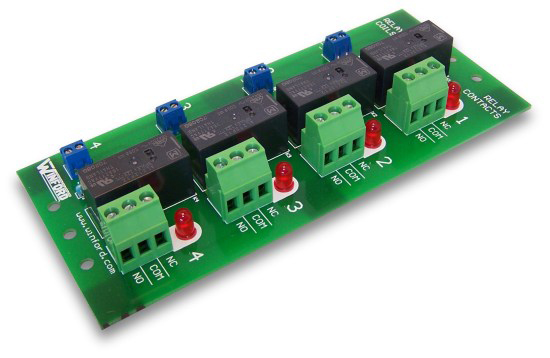

RLP104 - Relay Board, Passive, 15A SPDT, 4 relays, 5V DC, Feet
Part No. Description Price Stock
RLP104-5V-FT Relay Board, Passive, 15A SPDT, 4 relays, 5V DC, Feet $45
RLP104-12V-FT Relay Board, Passive, 15A SPDT, 4 relays, 12V DC, Feet $45
RLP104-24V-FT Relay Board, Passive, 15A SPDT, 4 relays, 24V DC, Feet $45
RLP104-5V-DIN Relay Board, Passive, 15A SPDT, 4 relays, 5V DC, DIN Rail Mount $46
RLP104-12V-DIN Relay Board, Passive, 15A SPDT, 4 relays, 12V DC, DIN Rail Mount $46
RLP104-24V-DIN Relay Board, Passive, 15A SPDT, 4 relays, 24V DC, DIN Rail Mount $46
∗ Standard lead time is 1 week

General Description

This relay board provides a convenient way to add relays to your project by allowing the connections to the coils and contacts to be wired with screw terminals. Relays allow you to switch high-current loads such as AC appliances, motors, and more. This board includes four SPDT relays with convenient screw terminal connections, and includes a protection diode (across the coil of the relay) and indicator LED for each relay. The relay contacts are electrically isolated from the rest of the board, which allows the board to be used in a wide variety of applications, including both AC and DC loads. This board does not include any relay driver circuitry, but instead has direct screw terminal connections to the coils and contacts of the relays. For a similar board with built-on driver circuitry, please click here.

The board is available with three different relay coil voltages (5, 12, 24 VDC), allowing you to choose whichever is most convenient for your project. Please note that the relay coil voltage you select has no effect whatsoever on the voltages you can switch with the relay contacts.

For mounting on a panel, we suggest the rubber feet version (-FT), 1/4" nylon standoffs under the mounting holes, and #6 screws.

Features


  • Four SPDT relays
  • LED indicator for each relay
  • Relay contacts rated for 15A at 250VAC
  • Screw terminals for relay coils (accepts 16-26 AWG wire)
  • Screw terminals for contacts (accepts 12-24 AWG wire)
  • Approximate dimensions: 2.6" x 5.9"
  • Rubber feet or DIN rail mount
