DB15 Dual Breakout Board


DB15 Dual Connector Breakout Board

DB15 Dual Breakout Board - DB15 Dual Breakout Board, Male-Female, Straight Connectors, Feet
Part No. Description Price Stock
BRK15MF-S-DIN DB15 Dual Breakout Board, Male-Female, Straight Connectors, DIN Rail Mount $23 4

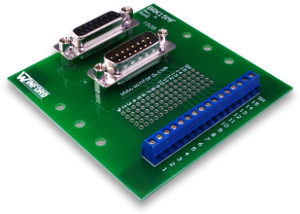

BRK15MF-S-FT DB15 Dual Breakout Board, Male-Female, Straight Connectors, Feet $21 2

General Description

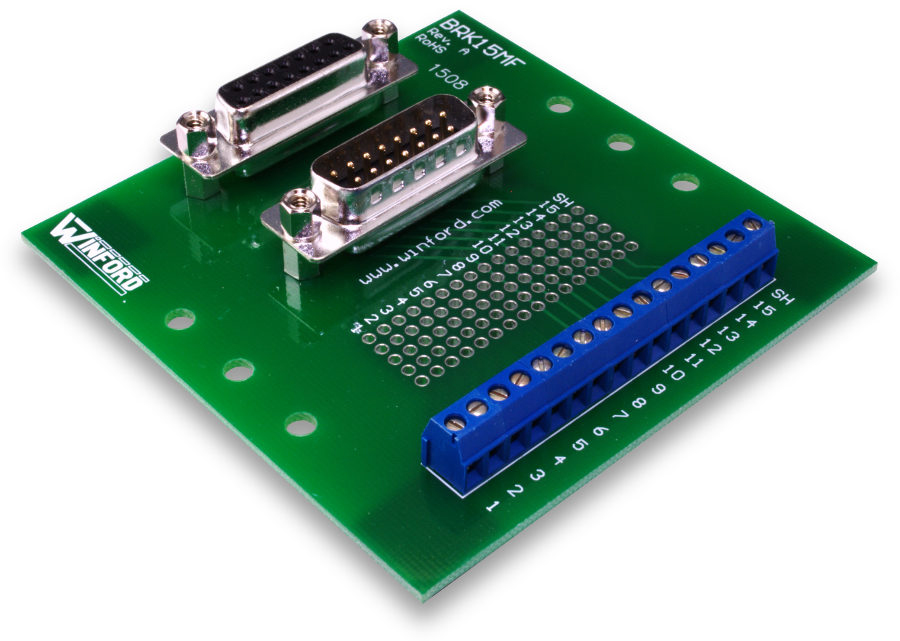

These breakout boards feature two DB15 connectors (one male, one female) wired 1:1 and all pins brought out to screw terminals for easy connection. Having two connectors allows the board to be easily inserted 'in-line' with an existing connection, allowing signals to pass through while being monitored, or to work with 'daisy-chained' equipment. Each pin is also brought to solder pads (4 per pin) at 0.1' spacing, allowing easy addition of standard pin headers.

These break out boards are perfect for experimentation and prototype work, as well as for use in the educational laboratory. They are well-suited for work with RS-232 serial ports, I/O cards, and any other device that uses a DB-15 connector. A breakout board is sometimes referred to as a 'transition module', 'terminal board', or 'interface module'.

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

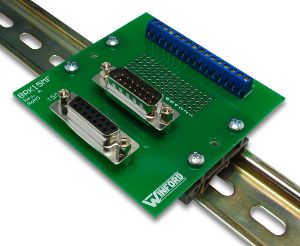

DIN Rail Mounting (-DIN) Rubber Feet (-FT)
DIN Rail Mount (-DIN) Rubber Feet (-FT)

Features


  • DB15 Standard Density 2-row connectors
  • Male and Female connected in parallel with each other and screw terminals
  • Screw terminal for each of the 15 lines, plus shield
  • Solder pad connection holes, five (5) per line
  • Supports addition of .1" pin headers
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 3.28" x 3.25"
  • Rubber feet or DIN rail mount
