DB15HD (High Density) Dual Breakout Boards


DB15HD (High Density) Dual Breakout Boards

DB15HD (High Density) Dual Breakout Boards - DB15HD Dual Breakout Board, Male-Female, Straight Connectors, Feet
Part No. Description Price Stock
BRK15HDMF-S-FT DB15HD Dual Breakout Board, Male-Female, Straight Connectors, Feet $22 1
BRK15HDMF-S-DIN DB15HD Dual Breakout Board, Male-Female, Straight Connectors, DIN Rail Mount $24
∗ Standard lead time is 1 week

General Description

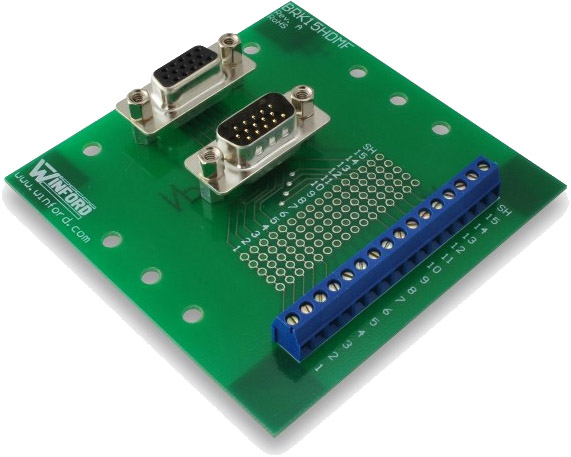

These breakout boards feature two DB15HD connectors (high density, 3 rows of pins). The two connectors (one male, one female) are wired 1:1 (pin 1 to pin 1), and all pins are brought out to screw terminals for easy connection. In addition, the shield (connector shell) is brought to a screw terminal as well. The two connectors allow the board to be easily inserted "in-line" with an existing connection, allowing signals to pass through while being monitored. It is also very convenient for "daisy-chaining" equipment. In addition to the screw terminal connection, each pin is also brought to solder pads (5 per pin) spaced on 0.1" centers, allowing easy addition of standard pin headers.

These break out boards are perfect for experimentation, prototype work, troubleshooting, educational labs, or permanent installations. They are well-suited for work with I/O cards, CNC equipment, and any other device that uses a DB-15HD connector. A breakout board is sometimes referred to as a "transition module", "terminal board", or "interface module".

DIN Rail Mount Version

These products are also available with DIN rail mounting clips for quick and convenient mounting where DIN rail is used. Product numbers ending with -DIN come with DIN clips already installed and ready to mount. The clips allow mounting on standard 35mm rail as well as 32mm rail.

Features


  • Both DB15HD Male and Female connectors
  • Easily insert inline to access signals
  • Screw terminal for each data line, plus shield (connector shell)
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Solder connection holes, five (5) per data line
  • Supports addition of .1" pin headers
  • PCB dimensions: 3.28" x 3.25"
  • Rubber feet or DIN rail mount
