50-Pin Centronics (RJ-21) Breakout Board


50-Pin Centronics (RJ-21) Breakout Board

50-Pin Centronics (RJ-21) Breakout Board - Centronics 50-Pin Female Breakout Board, R/A Connector, Feet
Part No. Description Price Stock
BRKDC50F-R-FT Centronics 50-Pin Female Breakout Board, R/A Connector, Feet $53
BRKDC50F-R-DIN Centronics 50-Pin Female Breakout Board, R/A Connector, DIN Rail Mount $55 1
∗ Standard lead time is 1 week

General Description

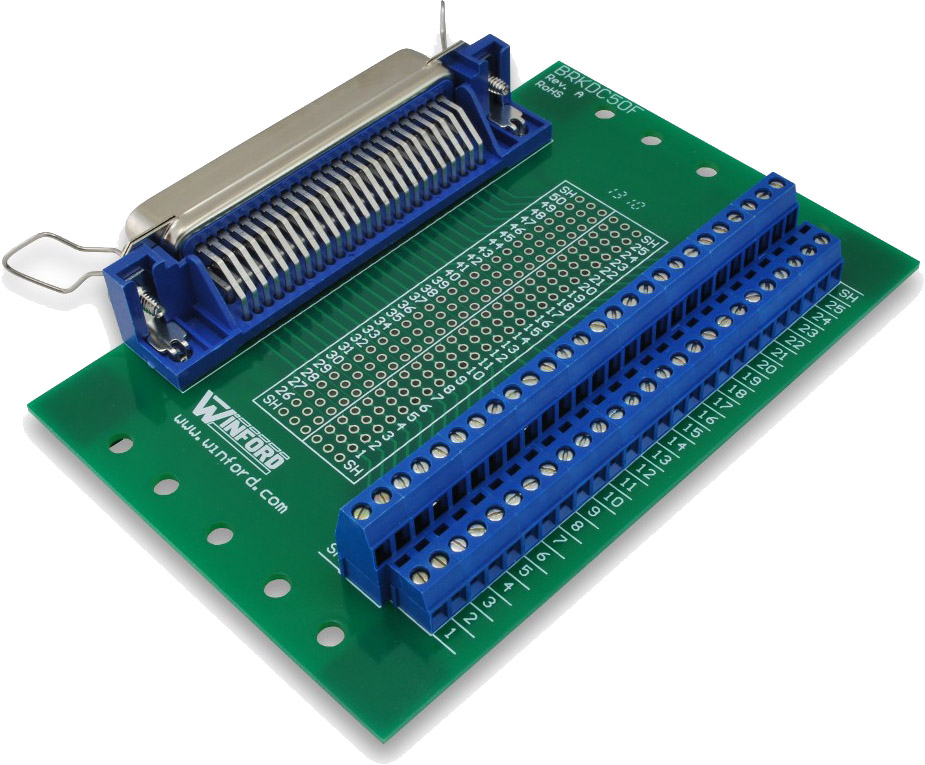

These breakout boards bring all 50 pins and shield of a 50-pin Centronics connector out to double deck screw terminal blocks for easy connection and prototyping work. In addition to the screw terminal connection, each pin is also brought to solder pads (3 per pin) at 0.1" spacing, allowing the addition of small components or 0.1" headers. This 50-pin Centronics connector is also referred to as a CHAMP, Amphenol, 50-pin telco, or RJ-21 connector.

These break out boards are perfect for experimentation, prototype work, lab projects, and permanent installations. They are well-suited for interfacing with data acquisition equipment, phone systems, or any other devices that use the RJ-21 50-pin Centronics connector. A breakout board is sometimes referred to as a "transition module", "terminal board", "breakout box", or "interface module".

DIN Rail Mount Version

These products are also available with DIN rail mounting clips for quick and convenient mounting where DIN rail is used. Product numbers ending with -DIN come with DIN clips already installed and ready to mount. The clips allow mounting on standard 35mm rail as well as 32mm rail.

Features


  • Centronics 50-Pin / CHAMP / RJ-21 connector
  • Screw terminal for each data line plus 2 screw terminals for shield
  • Double deck screw terminals provide compact wiring
  • Solder pad connection space for all 50 lines and shield
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Fast and easy connections
  • Perfect for prototyping and installations
  • DIN rail and rubber feet mounting options
  • Approximate dimensions: 3.15" x 4.7"
