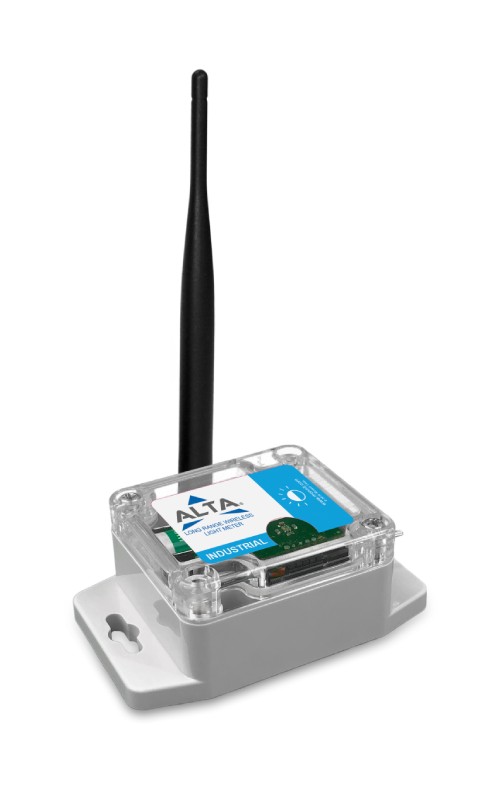

ALTA Industrial Wireless Light Meter

ALTA industrial wireless light meters measure the intensity of light in lux (luminescence/unit area), from 0 - 1000 lux (indoor range). Perfect for light sensitive applications like museum and art gallery light monitoring. User customization allows you to set the frequency of readings and the ability to set thresholds for notifications and alerts by SMS text, email or voice call from the system.

 ALTA Industrial Wireless Light Meter - ALTA INDUSTRIAL WIRELESS LIGHT METER, 900 MHz
Part No. Description Price Stock
MNS2-4-IN-LS-LM ALTA INDUSTRIAL WIRELESS LIGHT METER, 433 MHz $255 ∗
MNS2-8-IN-LS-LM ALTA INDUSTRIAL WIRELESS LIGHT METER, 868 MHz $245 ∗
MNS2-8-IN-LS-LM-PA ALTA INDUSTRIAL WIRELESS LIGHT METER, 868 MHz, High Gain Leaded Puck $253 ∗
MNS2-9-IN-LS-LM ALTA INDUSTRIAL WIRELESS LIGHT METER, 900 MHz $245 ∗
MNS2-9-IN-LS-LM-PA ALTA INDUSTRIAL WIRELESS LIGHT METER, 900 MHz, High Gain Leaded Puck $231 ∗
MNS2-9-IN-LS-LM-SOL ALTA INDUSTRIAL WIRELESS LIGHT METER, 900 MHz, Solar w/ Rechargeable Battery $259 ∗
∗ Standard lead time is 1 week

ALTA - Leading Enterprise Grade "Internet of Things" Solutions

ALTA sensors offer 3 to 4 times the range of standard sensor platforms, extending non-line-of-sight reach to an exceptional 1,200+ feet through walls (12-14 walls typical). Using Frequency-hopping Spread Spectrum (FHSS) also allows ALTA sensors to have better interference immunity from other wireless devices.

Superior power management provides ALTA sensors with almost twice the battery life of Monnit's standard wireless sensors.

  • Coin cell sensors typically last 3+ years.
  • AA and Industrial sensors typically last up to 12+ years.
ALTA products employ Monnit's new Encrypt-RF® Security (256-bit Diffie Hellman key exchange and AES-128 CBC encryption for all sensor data messages), so security is maintained at all communication points from sensor to gateway, gateway to software, then back again.

Integrated on-board data storage allows ALTA sensors to store data messages if communication to a wireless gateway is disrupted (power outage, Internet outage, or out of range). Messages that can't be delivered will be time-stamped and stored in memory (up to the last 512 messages) until communication with the gateway is restored, at which point the messages will all be transmitted.

Over-the-air updates allow ALTA products to be updated remotely if new fixes or features become available.

The standard version of this sensor is powered by two replaceable 1.5 V AA sized batteries (included with purchase). This sensor is also available with a line power option. The line powered version of this sensor has a barrel power connector allowing it to be powered by a standard 3.0 - 3.8 V power supply (Included with Line Power option upgrade). The line powered version also uses two standard 1.5 V AA batteries as backup for uninterrupted operation in the event of line power outage.

Power options must be selected at time of purchase, as the internal hardware of the sensor must be changed to support the selected power requirements.

Packing List

  • Wireless Sensor
  • Mounting Hardware
  • 3V Industrial Battery (Pre-Installed)
  • SMA Antenna

Features

  • 900/868/433 MHz Operating Frequency
  • Sensing Technology: High Sensitivity Photodiode
  • Sensor Material: Silicon
  • Peak Wavelength: 580 nm
  • Maximum Reverse Voltage: 6 V
  • Maximum Power Dissipation: 40 mW
  • Maximum Light Current: 500 uA
  • Maximum Dark Current: 0.3 uA
  • Maximum Rise Time: 8.5 ms
  • Maximum Fall Time: 8.5 ms
  • Maximum Operating Temperature Range: -30°C to +85°C
  • Measurement Range: 0 - 1,000 LUX
  • Weight: 3.7 oz.
  • Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)
  • Accuracy: 0.5% of reading
  • Resolution: 0.01 LUX
  • Battery Type: Replaceable 3.6V, 1800mAH (single AA sized)
  • Supply Voltage: 2.0 - 3.8 VDC
  • Battery Life: Up to 10 Year Battery Life.**
  • Max Operating Temperature: -40° to 85°C (-40° to 185°F)
  • Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)
  • Solar Power Option:
    • - 3.0 VDC Solar Panel
    • - 600 mAH Rechargeable Battery (>2000 Charge Cycles - 80% of Initial Capacity)
    • - Charging Temperature Range: 0° to 45°C (32° to 113°F)
    • - Max Temperature Range: -20° to 60°C (-4° to 140°F)
  • Enclosure Material: IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure
  • UL Rating: UL Listed to UL508-4x specifications (File E194432)
  • Dimension: 3.7 in x 2.32 in x 1.38 in
  • Good for light sensitive applications.

* Actual range may vary depending on environment.
** Battery life is determined by sensor reporting frequency and other variables.
