BRKSM10P10CSJ2B-R-P RJ50 10P10C Slim Breakout Board & Coupler 3D ModelDocuments

General Description

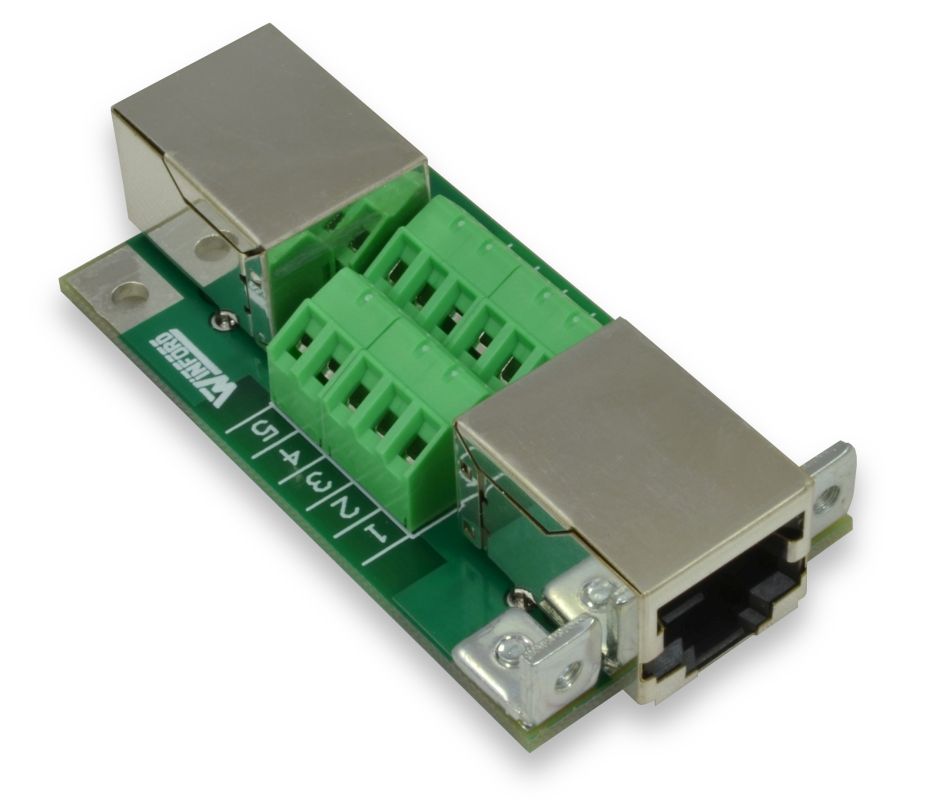

Make connections quickly and reliably with this breakout board, which brings every pin of its 10P10C (RJ50) Modular Jack connector out to screw terminals. This board also functions as a coupler (wired 1:1), allowing the user to easily insert it between cables; all the signals pass through, while the desired signals can be monitored or connected to other equipment.

Breakout Board Mounted through a PanelThese breakout boards are designed to be mounted in a panel, thus providing a convenient method of passing an RJ50 connection through a panel. The compact design of this board takes up minimal area on the panel surface, thus potentially allowing many connectors to be mounted in a relatively small area.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is well-suited for work with serial ports, sensors, data acquisition equipment, RS-232 devices, and other devices that use RJ50/10P10C connectors.

The '10P10C' designation on the modular jack stands for '10-Position, 10-Conductor', which is compatible with RJ50 connectors.

Panel Mounting

This product is designed to mount behind a panel face and extend through the panel. One end of the product features sturdy metal angle brackets with threaded holes (#4-40) to provide panel mounting capability. Two additional #4-40 screws (not included) are used to attach the breakout board assembly to the panel. The connector extends approximately 3 millimeters past the face of the mounting brackets, and thus the connector extends through the panel. A cutout must be made in the panel to accommodate the connector, and two holes are needed for the mounting screws. For more information on appropriate panel cutout size and locations, please see the product data sheet.

Panel Mount End	Mounting Bracket Face	Mounted in Panel
