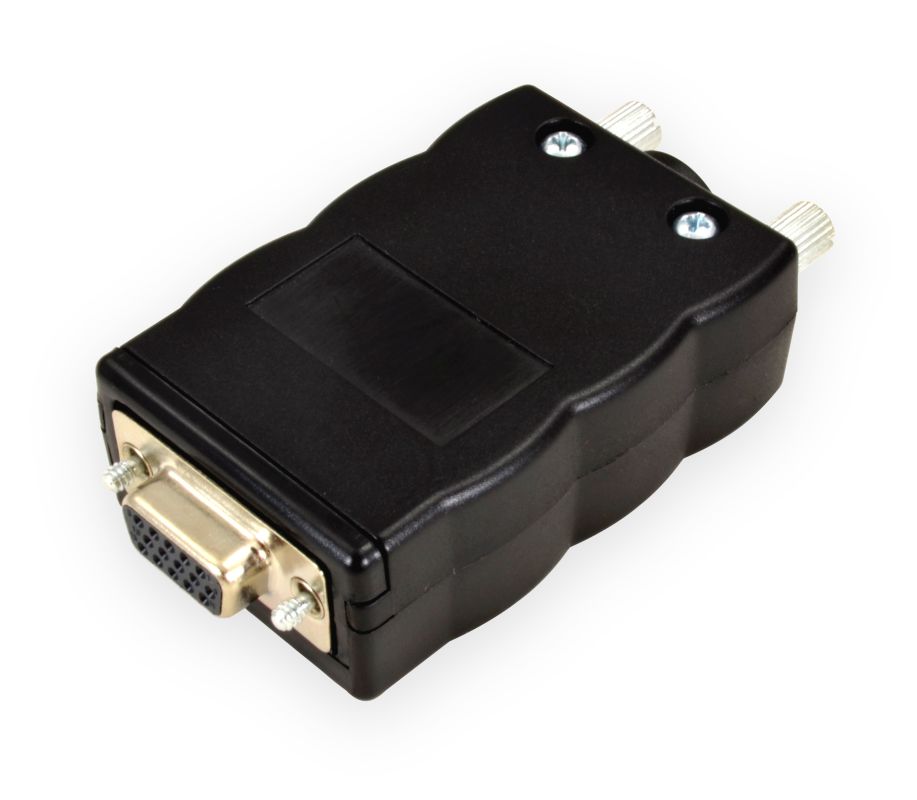

DB15HD Breakout Board with Enclosure Make connections quickly and reliably with this breakout board, which brings every pin of its DB15HD connector out to screw or spring terminals. This breakout board comes mounted in an attractive case. It is available with either Thumbscrews or Jack Screws for connector hardware; see pricing table below for all part numbers. This product is available with both male and female connectors. 3D ModelsDocuments

Note: This product contains the 'high density' DB15HD connector with 3 rows of pins.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, DAQ devices, CNC equipment, and other devices that uses a DB-15HD connector.

Enclosure

The breakout board comes already installed in a sturdy black plastic hood enclosure with a removable cover. A hole in the end provides ample space for conductors to exit the enclosure, and a convenient strain-relief feature allows wires to be easily secured with a zip tie in just seconds. A curved channel guides the zip tie (included) around the wire bundle and back up for cinching.

Terminal Options

This product is now available with spring terminals (screw terminal option will be available soon).
Spring Terminals allow connections to be made very quickly and efficiently. Simply depress the actuator button on top of the terminal block, insert or remove the wire, and release the button.

Spring Terminals (BRKEGDx)

Hardware Options

This product is available in two different connector hardware options:

Thumbscrews (-T option)	Jack Screws (-R option)
