DB15HD Breakout Board with Spring Connection Terminals


DB15HD Breakout Board with Spring Connection Terminals

DB15HD Breakout Board with Spring Connection Terminals - DB15HD Female Breakout Board, Straight Connector, Screwless Push-In Spring Clamp, DIN Rail Mount
Part No. Description Price Stock
BRKG15HDF-S-DIN DB15HD Female Breakout Board, Straight Connector, Screwless Push-In Spring Clamp, DIN Rail Mount $17
BRKG15HDF-S-N DB15HD Female Breakout Board, Straight Connector, Screwless Push-In Spring Clamp Terminal Block $16
BRKG15HDM-S-DIN DB15HD Male Breakout Board, Straight Connector, Screwless Push-In Spring Clamp, DIN Rail Mount $17
BRKLD15HDM-SG-DIN DB15HD Male Breakout Board, Straight Connector, 5mm Pluggable Spring Terminals, DIN Rail Mount $26
∗ Standard lead time is 1 week

General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its DB15HD connector out to spring terminals. This product is available with both male and female connectors.

Each pin, including shield, is also brought to solder pads (1 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

This breakout board features push-in spring connection terminal blocks. These screwless spring clamp terminal blocks allow connections to be made very quickly and efficiently. The spring terminal connections are reliable and secure, but wires can be connected and disconnected in a fraction of the time required with standard screw terminal blocks. Simply depress the actuator button on top of the terminal block, insert or remove the wire, and release the button. Done! In addition, screwless spring connections can offer better results in environments where vibration could potentially loosen standard screw terminal block connections.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, DAQ devices, CNC equipment, and other devices that uses a DB-15HD connector.

Note: This product contains the 'high density' DB15HD connector with 3 rows of pins.

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -N have no mounting hardware included; they can be easily panel-mounted by using 1/4" nylon standoffs under the mounting holes, and #6 screws.

DIN Rail Mount No Mounting Hardware

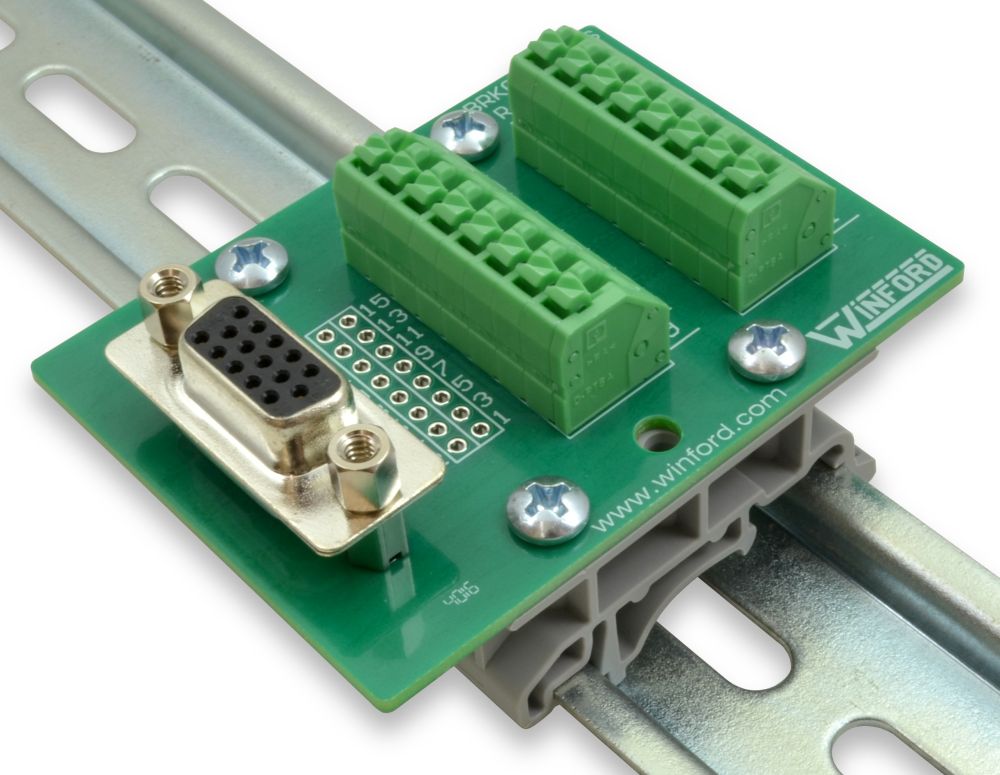

DIN Rail Mount (-DIN)
Rail not included

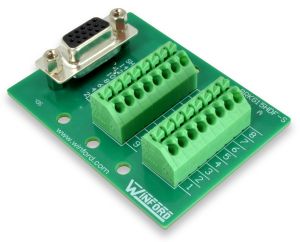

No Mounting Hardware (-N)

Features


  • DB15HD (High Density) connector
  • Quick connection spring cage terminal blocks for all pins, plus shield
  • Solder pad connection holes, one (1) per line
  • Supports addition of .1" pin headers
  • Spring terminals accommodate wire sizes from 16AWG to 24AWG
  • Approximate dimensions: 2.63" x 1.95"
  • DIN rail mountable
