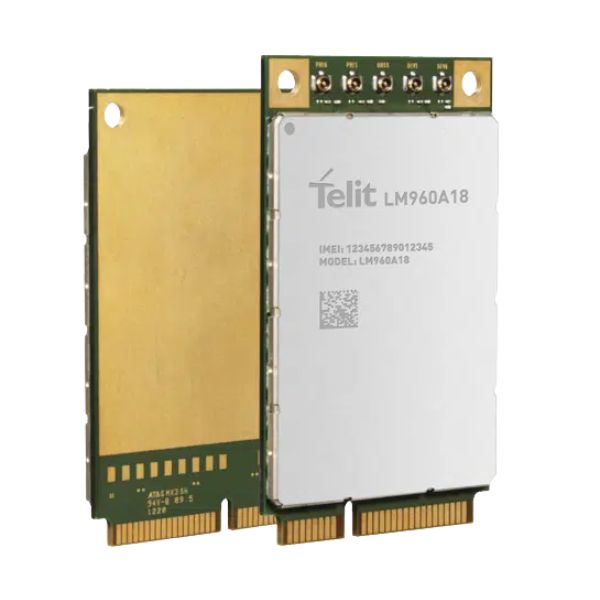

LM960A18

The LM960A18 Mini PCI-Express (mPCIe) data card provides high-speed data rates through LTE-Advanced Pro [LTE-A Pro] and a cellular connection for network appliance applications. It is highly suited for high throughput goods that require the most powerful 4G LTE connectivity, offering a rich and smooth user experience. The LM960A18 mPCIe data card supports LTE Category (Cat) 18 and achieves download speeds of up to 1.2 Gbps with 4 x 4 MIMO + 3xCA and 1 Gbps with 2 x 2 MIMO + 5xCA. To allow worldwide deployments, a broad range of frequency bands, band combinations, and certifications are offered.

 LM960A18 - Telit LM960A18 LTE Cat18 - Global - mPCIe - FW 32.00.128
Part No. Description Price Stock
LM960A18 Telit LM960A18 LTE Cat18 - Global - mPCIe - FW 32.00.128 $254 ∗
∗ Standard lead time is 1 week

Features

  • LTE CAT 18: Exceptional high speed with data rates of up to 1.2 Gbps download and 150 Mbps upload
  • Support of UL at 2xCA and up to 5xCA on DL with 4 x 4 MIMO, 256-QAM
  • Ample LTE frequency band support
  • Up to four independent firmware images selectable at boot to support different network operator requirements
  • 3G fallback technology
  • Private LTE support (including CBRS/OnGo)
  • Control via AT commands according to 3GPP TS27.005, 27.007 and custom AT commands SIM application toolkit 3GPP TS 51.014
  • SMS over SG and IMS
  • Dual-SIM interface (dual-SIM, single standby)
  • Firmware over-the-air (FOTA) update
  • Embedded GNSS (GPS, GLONASS, BeiDou, Galileo) receiver with dedicated RF connector
  • Dimensions: 5.10cm × 3.00cm × 0.28cm (2.01in × 1.18in × 0.11in)
  • Operating Temperature: -40°C to 85°C
  • Warranty Period: 1 year
