8051 Debuggers


Powerful, yet easy to use and affordable 8051 Debugger for our MINI-MAX/51-C2 board.

8051 Debuggers - 8051 Debugger for the MINI-MAX/51-C2 board

MINI-MAX/51-C Debugger kernel occupies only 2K on the MINI-MAX/51-C2 board and allows you to watch your program as it runs on the actual hardware. Put breakpoints, single-step, change registers, reset the board. Code modifications are downloaded automatically every time you start the debugger.

8051 Debugger simplifies code development with Micro C and Micro-IDE. Errors in user programs can be found and fixed quickly in Debugging mode by avoiding time consuming repetitive downloads to the target board.

Part No. Description Price Stock
8051 Debugger for SDCC 8051 Debugger for the SDCC compiler $69 0
8051 Online Debugger 8051 Debugger for the MINI-MAX/51-C2 board $69 0
8051 Online Debugger Site License Unlimited Usage of 8051 Debugger at a site $699 0

Features

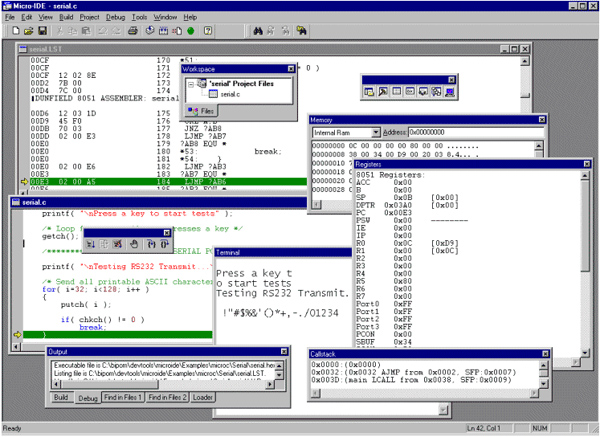

  • Integrated Development Environment to edit, build, download, simulate and debug within the same program.
  • Debugging of 8051 programs in C, Assembly or mixed level.
  • Program being debugged can be simultaneously viewed in C and Assembly.
  • Variable window to watch C variable names, values and addresses.
  • Register window to watch the simulated special function registers including 8051 ports.
  • Memory window to watch and modify up to 64K of debugged program memory or 256-byte internal RAM.
  • Callstack window to view list of function calls that lead to current program line ( traces all jumps and calls )
  • Terminal window to debug 8051's serial port
  • Output Window Debug Tab to watch debug messages
  • Fully customizable window layout with dockable or floating debug windows.
  • Stop Debugging button to stop debugging at any point
  • Go button to start execution
  • Step Into and Step Over buttons to single-step through the source code at C or Assembly level
  • Unlimited number of breakpoints to stop execution at any C or Assembly source line.
  • Windows 95/98/ME/NT/2000/XP compatible
  • Multi-file Editor to create and modify C or Assembly source code while debugging.
  • Supports Micro C for 8051/52
