MINI-MAX/AVR-BU

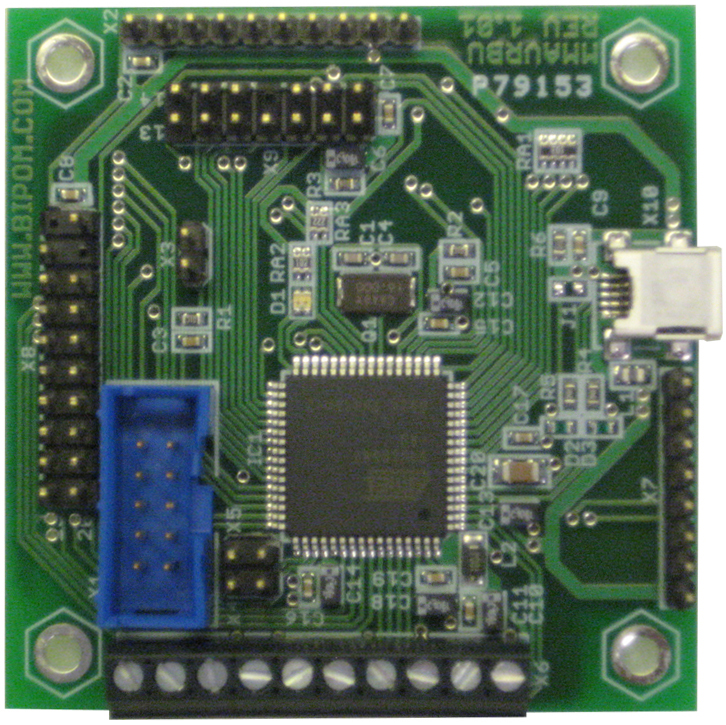

MINI-MAX/AVR-BU is a general purpose, low-cost and highly-expandable microcontroller system with device USB support. It is based on the ATMEL AT90USB647-AU 8-bit microcontroller with integrated USB controller.
Ideal for Internet of Things (IoT) applications.

 MINI-MAX/AVR-BU - Based on the ATMEL AT90USB647 micro-controller with integrated USB controller and analog inputs
BiPOM Electronics is a proud ATMEL Consultant for AVR Family of microcontrollers.
Part No. Description Price Stock
MINI-MAX/AVR-BU Based on the ATMEL AT90USB647 micro-controller with integrated USB controller and analog inputs $49 ∗
∗ Standard lead time is 1 week

The Flash microcontroller can be programmed through USB or JTAG connectors. This simplifies new program development and debugging. Downloading of a program to the microcontroller typically takes few seconds.

Features

  • Program execution speed up to 8-16 MIPS at 8-16MHz
  • 64 Kilobytes of Flash
  • 2 Kilobyte of EEPROM
  • 4 Kilobyte of RAM
  • 48 Programmable I/O Lines
  • One 2-wire UART
  • One Master/Slave Serial Peripheral Interface (SPI)
  • One 2-wire Interface (TWI) with I2C features
  • USB 2.0 Full-speed/Low-speed Device and On-The-Go Module
  • 832 Bytes USB DPRAM
  • Two 8-bit Timers
  • Two 16-bit Timers
  • One Programmable Watchdog Timer with Separate On-chip Oscillator
  • Four 8-bit PWM Channels
  • Six PWM Channels with Programmable Resolution from 2 to 16 Bits
  • One Output Compare Modulator
  • 8-channel, 10-bit ADC
  • JTAG (IEEE std. 1149.1 compliant) Interface
  • Device mini USB Port for Full Speed (12 Mbit per second) data communication
  • 8-pin connector for 2-wire UART (5V levels)
  • 14-pin connector for external LCD
  • 10-pin connector for external KEYPAD
  • 10-pin terminal block for 5 analog inputs, +2.56 Volts reference output and 5 Volts analog supply
  • 20-pin Expansion connector for peripheral boards
  • 10-pin JTAG connector for In-circuit Programming and Real-time debugging In-circuit Programming and debugging of the microcontroller through the JTAG Interface
  • MINI-MAX/AVR-BU is powered from a 5 Volt DC external power source through the USB connector
  • Current consumption is less than 20mA at 5 Volt DC
  • Dimensions are 2.35 X 2.40 inches (5.97 X 6.10 centimeters)
  • Mounting holes of 0.138 inches (3.5 millimeters) are on four corners
  • 0° - 70°C operating, -40° - +85°C storage temperature range.
  • Warranty Period: 3 years
