MINI-MAX/AVR-C

MINI-MAX/AVR-C is a general purpose, low-cost and highly expandable micro-controller system. It is based on the ATMEL ATMEGA2560-16 single-chip Flash micro-controller
Ideal for Internet of Things (IoT) applications.

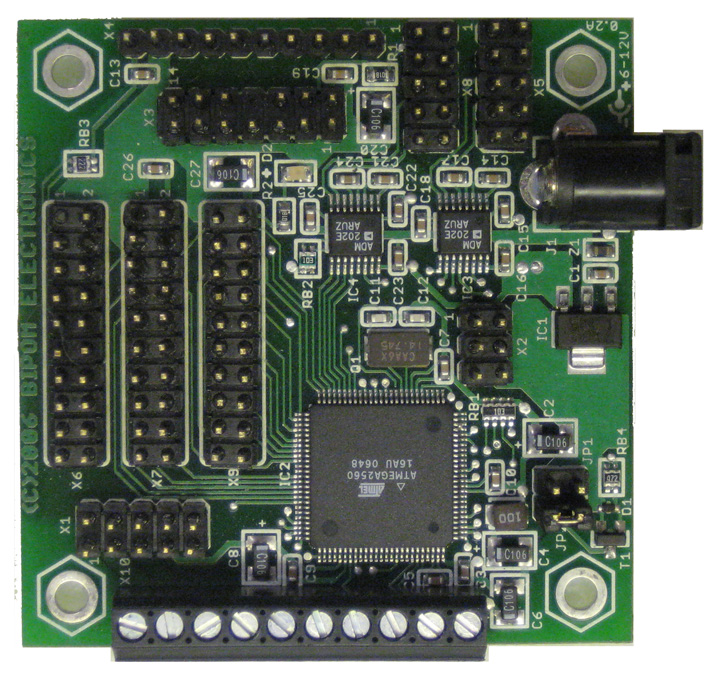

 MINI-MAX/AVR-C - Micro-controller system which is based on the ATMEGA2560-16 chip
BiPOM Electronics is a proud ATMEL Consultant for AVR Family of microcontrollers
Part No. Description Price Stock
MINI-MAX/AVR-C Micro-controller system which is based on the ATMEGA2560-16 chip $69 ∗
MINI-MAX/AVR-C(No Adapter) Micro-controller system which is based on the ATMEGA2560-16 chip $63 ∗
PWR-6VDC-1A-P 6VDC Adapter, 1A $12 ∗
∗ Standard lead time is 1 week

Features

  • Up to 16 MIPS Throughput at 16 MHz
  • 256 Kilobytes of In-System Re-programmable Downloadable Flash Memory
  • 8 Kilobytes of RAM
  • 4 Kilobytes of EEPROM
  • Two 8 bit Timer/Counters and four 16 bit Timer/Counters
  • Programmable Watchdog Timer
  • 4 Programmable Enhanced UART Serial Interfaces
  • SPI Serial Interface
  • 2-wire Serial Interface (I2C)
  • 12 Pulse Width channels
  • 16 channel 10-bit ADC with selectable 2.56V or 1.1V Reference Voltage
  • 86 general purpose I/O pins
  • Real time In-System debug support through JTAG Interface
  • In-circuit Programming and debugging of the micro-controller through either the JTAG or SPI interface
  • Two RS232 Serial Ports and two UART Ports with 5V signals for data communications
  • Keypad connector
  • LCD connector ( with programmable contrast adjustment for LCD
  • Expansion bus interface to low-cost peripheral boards
  • Programming options include WinAVR C Compiler,BASCOM AVR BASIC Compiler, Arduino Compiler
  • Dimensions: 1.54cm (0.61in)
  • Warranty Period: 3 years

The adapter is 110VAC type. Please let us know if you would like to receive a 220VAC adapter for your country or if you would like to have the board shipped without an adapter.
