THERMOCOUPLE-4


4-channel thermocouple amplifier with cold-junction compensation.
Ideal for Internet of Things (IoT) applications.

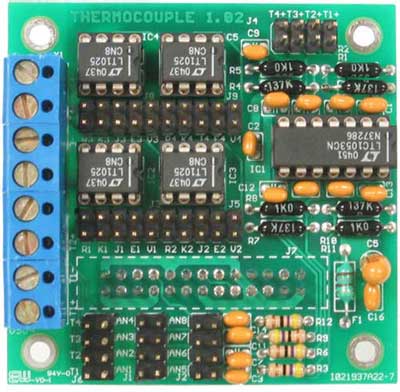

THERMOCOUPLE-4 - 4-channel thermocouple board for types E,J,K,R,S,T
Part No. Description Price Stock
THERMOCOUPLE-4 4-channel thermocouple board for types E,J,K,R,S,T $79 2
THERMOCOUPLE-4A 4-channel thermocouple board for types E,J,K,R,S,T. Improved accuracy $89
∗ Standard lead time is 1 week

Features


  • Used with DAQ-2543 or DAQ-128 boards, MINI-MAX/51-F or any other microcontroller
  • Supports type J,K,T,E,R,S thermocouples
  • Stackable for up to 8 channels on one microcontroller
  • Thermocouple type can be selected independently for each channel
  • Analog output allows standalone operation ( without a microcontroller )
  • Gain of 137 with cold junction compensation
