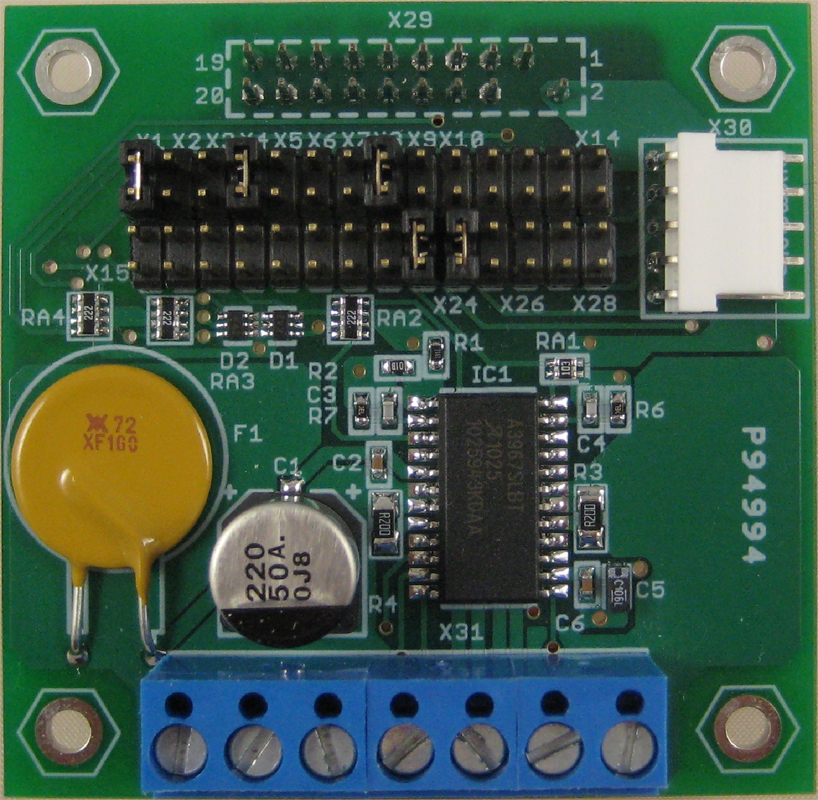

MOTOR-1B


Universal stepper motor controller board.
Ideal for Internet of Things (IoT) applications.

MOTOR-1B - A universal stepper motor controller board for BiPOM MINI-MAX series microcontroller boards and othe
Part No. Description Price Stock
MOTOR-1B A universal stepper motor controller board for BiPOM MINI-MAX series microcontroller boards and othe $39
∗ Standard lead time is 1 week

MOTOR-1B board supports unipolar and bipolar stepper motors up to 750 mA of coil current at up to 30 Volts. Multiple MOTOR-1B boards can be stacked for controlling up to 3 stepper motors at the same time. Micro stepping is also supported.

MOTOR-1B board is fully assembled ( no soldering required ) and ready to use out of the box. C, BASIC and Flowcode example projects for MOTOR1-B can be downloaded from BiPOM web site. MOTOR-1B is the ideal component for building sophisticated robotics, CNC machines, laser engravers, 3D printers, plotters and many other industrial, educational and hobby applications.

MOTOR-1B is fully backed by warranty, technical support and application assistance from BiPOM Electronics.

Features


  • ±750 mA, 30 Volt Output Rating
  • 3.3 Volt to 5.5 Volt Logic Supply Voltage Range
  • Mixed, Fast, and Slow Current-Decay Modes
  • Two full bridge controllers on one board
  • Micro stepping support
  • Simple control with Direction and Step signals
  • Designed to work with 68XX, 8051, ARM, AVR, MSP430, PIC, BASIC Stamp and many other microcontrollers
  • Stackable ( up to 3 boards )
  • -20° to 85° Celsius operation
  • Small form factor: 2.35" by 2.40"
