DIO-1

I/O expander board with 8 open/collector outputs ( each capable of 400mA ) and 12 TTL/CMOS inputs/outputs. DIO-1 has a PIC16C62 micro-controller that acts as a I2C 2-wire slave device can also be used as a standalone PIC micro-controller board.

Documents Support & FAQ Applications Peripherals

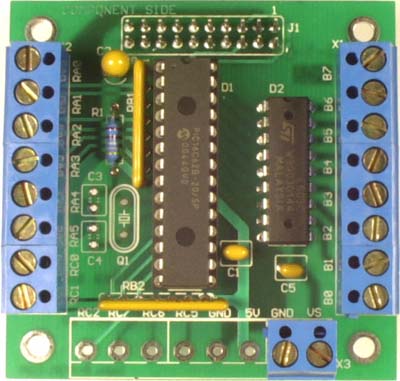

DIO-1 - I/O Expander board with high current outputs

Features

For use with MINI-MAX microcontroller boards or other computer systems or as standalone microcontroller board
PIC16C62 controller
8 open/collector outputs (400mA) and 12 TTL/CMOS inputs/outputs
I2C slave interface
Terminal blocks for easy interfacing
Protection diodes for inductive loads
Ideal for stepper motor or relay control
