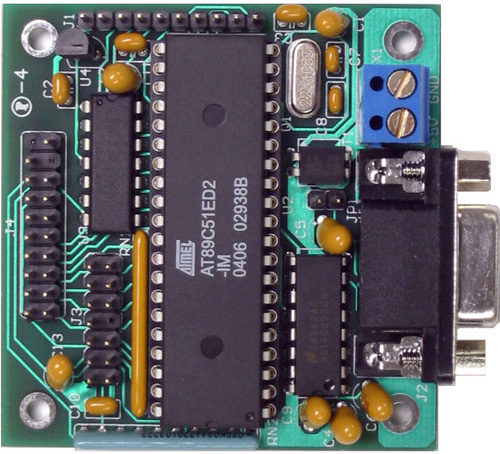

MINI-MAX/51-D

MINI-MAX/51D is a low-cost and highly expandable micro-controller system. It is based on the ATMEL AT89C51ED2 single-chip Flash micro-controller.

Documents

Software

Applications

Spares

Customization

Peripherals

Microcontroller board with ATMEL AT89C51ED2, 64K Flash, 2K RAM, 32 I/O, RS232, 5Volt operation

Features:

ATMEL AT89C51ED2 8051 compatible Microcontroller
64K Flash program memory, 2K RAM, 2K data EEPROM
32 Digital Input/Output Lines
LCD, keypad and Expansion bus interface to low-cost peripheral boards.
In-System Programming/Debugging
Powerful, yet affordable development software options include Micro-IDE, Micro C Compiler, BASCOM51 Basic Compiler, Serial loader, simulator and debugger
Requires Regulated 5V DC Operation
22.1184 MHz Clock speed
RS232 Serial Port
