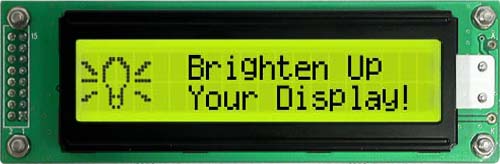

LK202-25-USB Display Module

LK202-25-USB


This 20 character by 2 line LCD, comes with an easy to use USB communication interface and has the capability to connect up to a 5 by 5 matrix style keypad.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


Keypad25
One Wire1
GPO6
Advanced GPON/A

Appearance:


Module Size116.00 mm(L)×37.00 mm(W)×25.73mm(T)
Character Size5.55 mm(L)×3.20 mm(W)
Active Area73.50 mm(L)×11.50 mm(W)
Background ColorBlack
Text ColorYellow
Format20 x 2

Interface:


Buffer128 Bytes
USB1200 2400 9600 19200 33600 56700 115200

Electrical:


Standard Temperature0°C to 50°C
Extended Temp.(-E)-20°C to 70°C
Max Humidity90%
Supply Current50 mA
Backlight Current185 mA
Inrush CurrentN/A

Part No. Description Price
LK202-25-USB Base Product $70
LK202-25-USB-E Extended Temperature option. $80
