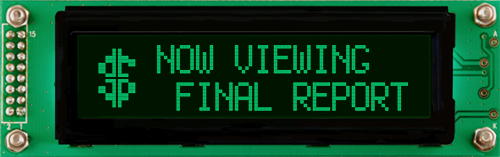

MOI-AL202C-FG3SE

---

This 20 character by 2 line LCD display comes with an easy to use I2C communication interface, 3 General Purpose Outputs and has speeds up to 100 Kpbs.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:

---

Keypad	N/A
One Wire	N/A
GPO	3

Appearance:

---

Module Size	116.00 mm (L)×37.00 mm(W)×21.73 mm(T)
Character Size	3.20 mm (L)×5.55 mm(W)
Active Area	73.50 mm(L)×11.50 mm(W)
Background Color	Black
Text Color	Green
Format	20 x 2

Interface:

---

Buffer	128 Bytes
Other	I2C

Electrical:

---

Standard Temperature	0°C to 50°C
Max Humidity	90%
Supply Current	39 mA
Backlight Current	198 mA

Part No.	Description	Price
MOI-AL202C-FG3SE	Base Product	$45
