MOU-AL202C

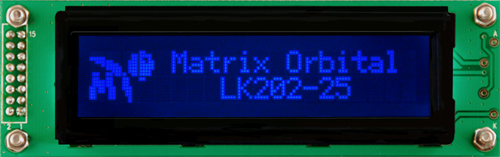

This 20 character by 2 line LCD display comes with an easy to use USB communication interface and 3 General Purpose Outputs.
SoftwareCablesLCD Selection GuideKeypad Selection Guide
Features:
| Keypad | N/A |
| One Wire | N/A |
| GPO | 3 |
Appearance:
| Module Size | 116.00 mm(L)×37.00 mm(W)×26.43 mm(T) |
| Character Size | 5.55 mm(L)×3.20 mm(W) |
| Active Area | 73.50 mm(L)×11.50 mm(W) |
| Background Color | Black |
| Text Color | Blue |
| Format | 20 x 2 |
Interface:
| Buffer | 128 Bytes |
| USB | 19200 bps |
Electrical:
| Standard Temperature | 0°C to 50°C |
| Max Humidity | 90% |
| Supply Current | 44 mA |
| Backlight Current | 113 mA |
| Part No. |
Description |
Price |
|
| MOU-AL202C-BW3SE |
USB character 20X2 LCD |
$50
|
|
| MOU-AL202C-FA3SE |
2 line 20 character economy LCD display. USB interface |
$50
|
|
| MOU-AL202C-FB3SE |
2 line 20 character economy LCD display. USB interface |
$50
|
|
| MOU-AL202C-FG3SE |
2 line 20 character economy LCD display. USB interface |
$50
|
|
| MOU-AL202C-WB3SE |
2 line 20 character economy LCD display. Blue text |
$50
|
|
| MOU-AL202C-XR3SE |
USB character 20X2 LCD |
$50
|
|
| MOU-AL202C-XY3SE |
USB character 20X2 LCD |
$50
|
|
| MOU-AL202C-YX3SE |
USB character 20X2 LCD |
$50
|
|
| MOU-AL202C-FW3SE |
2 line 20 character economy LCD display. USB interface |
$50
|
|
| MOU-AL202C-WB3SJ |
USB character 20X2 LCD |
$50
|
|
