MOU-AL202C-WB3SE Display Module

MOU-AL202C-WB3SE

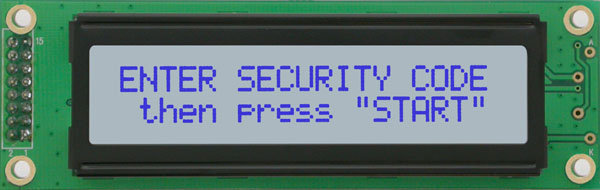

This 20 character by 2 line LCD display comes with an easy to use USB communication interface and 3 General Purpose Outputs.

Software
Technical Manual
Cables
LCD Selection Guide
Keypad Selection Guide

Features:


KeypadN/A
One WireN/A
GPO3

Appearance:


Module Size116.00 mm(L)×37.00 mm(W)×26.43 mm(T)
Character Size5.55 mm(L)×3.20 mm(W)
Active Area73.50 mm(L)×11.50 mm(W)
Background ColorWhite
Text ColorBlue
Format20 x 2

Interface:


Buffer128 Bytes
USB19200 bps

Electrical:


Standard Temperature0°C to 50°C
Max Humidity90%
Supply Current44 mA
Backlight Current113 mA

Part No. Description Price
MOU-AL202C-WB3SE Base Product $50
