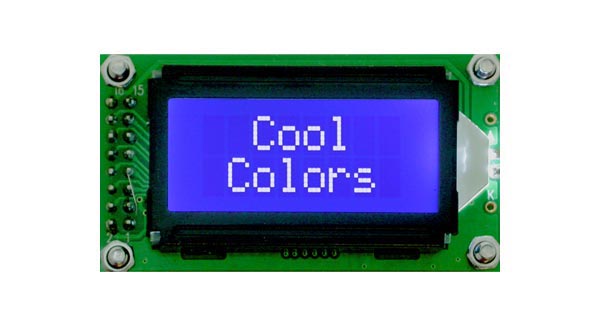

MOP-AL082B-BBTW-25E-3IN Display Module

MOP-AL082B-BBTW-25E-3IN


High quality alphanumeric parallel displays feature industry compatible HD44780 4/8 bit controller.

Note: This product does not include the pin header or the cable. For LCD displays with pre-soldered connector and cable, please see LCD... series. Cable can also be purchased separately by clicking here.

Software
Technical Manual
LCD242 Cable
LCD Selection Guide

Features:


IC PackageCOB
LCD TypeBlue STN
PolarizerTransflective
Character SetEnglish / Japanese
ModelB
Viewing Angle12 O'Clock
ControllerS6A0069
NegGenN/A

Appearance:


Module Size58.00 mm(L)×32.00 mm(W)×14.00 mm(T)
Character Size5.56 mm(L)×2.96 mm(W)
Active Area27.81 mm(L)×11.50 mm(W)
Background ColorWhite
Format8 x 2

Electrical:


Standard Temperature-20°C to 70°C
Max Humidity90%
Supply Current5 mA
Backlight Current60 mA

Part No. Description Price
MOP-AL082B-BBTW-25E-3IN Base Product $10
