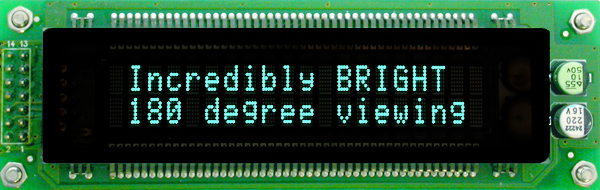

VK202-25 Display Module

VK202-25


A smart memory chip allows you to save your settings and create your own personal look. The 20 characters by 2 lines display is an industry workhorse. Some examples of the uses in industrial applications are digital video recorders and HTPC cases. This unit is also used in automobiles, boats, and aircraft.

Software
Technical Manual
Cables
VFD Filters
Keypad Selection Guide

Features:


Keypad25
One Wire1
GPO6
Advanced GPON/A

Appearance:


Module Size116.00 mm (L)×37.00 mm(W)×29.48 mm (T)
Character Size4.70 mm (L)×2.40 mm(W)
Active Area70.80 mm(L)×11.50 mm(W)
Text ColorBlue/Green
Format20 x 2

Interface:


RS2321200 to
RS232 TTL1200 to
Buffer80 Bytes
OtherI2C

Electrical:


Standard Temperature-20°C to 70°C
Extended Temp.(-E)-40°C to 85°C
Max Humidity90%
Supply Current209 mA
Backlight CurrentN/A
Inrush CurrentN/A

Part No. Description Price
VK202-25 Base Product $149
VK202-25-E Extended Temperature option. $159
VK202-25-V Wide Voltage power, +9 to +15Vdc. $152
VK202-25-V-E Wide Voltage power +9 to +15Vdc. Extended Temperature -20 to +70 C. $162
